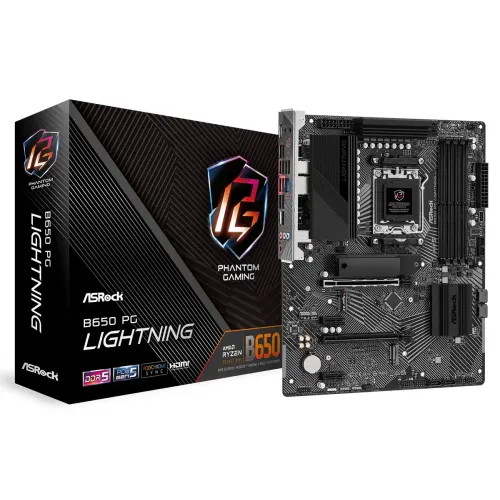

ASRock B650 PG Lightning AMD AM5 ATX Motherboard

Product Specifications

Supported CPU: AMD Socket AM5 Ryzen 8000 & 7000 Series Processors
Chipset: AMD B650
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
Form Factor: ATX Form Factor: 12.0in x 9.6in, 30.5 cm x 24.4 cm, 8 Layer PCB
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
Expansion Slots:
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode
2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)
1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Memory:
Type: DDR5
Slots: 4 DIMMs
Supported Memory: Dual Channel DDR5 Memory Technology, Supports DDR5 nonECC, unbuffered memory up to 6200+(OC)
Maximum Memory: 128GB
Graphics: Integrated AMD RDNA 2 graphics (Actual support may vary by CPU), 1 x HDMI 2.1 TMDS/FRL 8G Compatible
Connector & Ports:
1 x HDMI Port
1 x USB 3.2 Gen2x2 TypeC (Rear)
1 x USB 3.2 Gen2 TypeC (Front)
9 x USB 3.2 Gen1 (7 Rear, 2 Front)
8 x USB 2.0 (4 Rear, 4 Front)
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Storage:
1 x Blazing M.2 Socket (M21, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
1 x Hyper M.2 Socket (M22, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
1 x M.2 Socket (M23, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode
4 x SATA3 6.0 Gb/s Connectors

Product Description

Experience topnotch performance and reliability with the ASRock B650 PG Lightning AMD AM5 ATX Motherboard. This cuttingedge motherboard supports AMD’s Ryzen 8000 & 7000series processors with up to 16 Zen 4 cores and dualchannel DDR5 memory with a maximum capacity of 128GB.

The ASRock B650 PG Lightning Motherboard boasts a robust 14+2+1 Power Phase, Dr.MOS design featuring the latest SPS (Smart Power Stage) technology, ensuring stable and efficient power delivery. The 8layer PCB provides stable signal traces and power shapes, delivering lower temperatures and higher energy efficiency.

Enjoy immersive audio with Nahimic Audio, which offers engaging listening experiences with vibrant and rich details. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming, providing a 360° immersive experience during gaming.

The motherboard features a Blazing M.2 accommodates the latest PCI Express 5.0 standard, delivering twice the bandwidth compared to the previous generation, with a breathtaking 128GB/s transfer speed. The extralarge aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those highspeed M.2 SSDs as cool as possible.

The ASRock B650 PG Lightning Motherboard also features builtin RGB illumination, onboard RGB headers, and an addressable RGB header that allow the motherboard to be connected to compatible LED devices. With a pair of onboard TypeA and TypeC USB 3.2 Gen2 ports, you can enjoy nextgeneration USB 3.2 Gen2 devices and deliver up to 10 Gbps data transfer rates.

Backed by a 3year warranty, the ASRock B650 PG Lightning Motherboard is the perfect choice for those seeking a highperformance, reliable, and featurerich motherboard for their gaming and computing needs.

Key Features:

Supports AMD Ryzen 8000 & 7000series processors
Dualchannel DDR5 memory with maximum capacity of 128GB
14+2+1 Power Phase, Dr.MOS design
Nahimic Audio with Sound Tracker
Blazing M.2 with PCI Express 5.0 standard
Builtin RGB illumination and headers
USB 3.2 Gen2 ports with up to 10 Gbps data transfer rates
3year warranty

Upgrade your computing experience with the ASRock B650 PG Lightning Motherboard, available now in Bangladesh. Get the best performance, reliability, and features for your gaming and computing needs.
