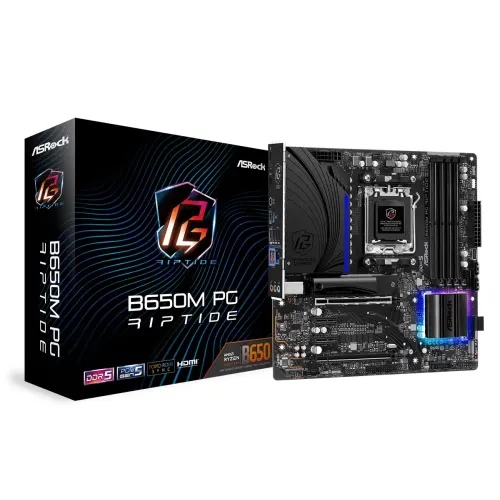

ASRock B650M PG Riptide AMD AM5 Micro ATX Motherboard

Product Specifications

Supported CPU: AMD Socket AM5 Ryzen 8000 & 7000 Series Processors
Chipset: AMD B650
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
Form Factor: Micro ATX Form Factor: 9.6in x 9.6in, 24.4 cm x 24.4 cm, 2oz Copper PCB
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
Expansion Slots:
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode
2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)
Supports AMD CrossFire
15μ Gold Contact in VGA PCIe Slot (PCIE1)
Memory:
Type: DDR5
Slots: 4 DIMMs
Supported Memory: Dual Channel DDR5 Memory Technology, Supports DDR5 nonECC, unbuffered memory up to 6200+(OC)
Maximum Memory: 128GB
Graphics:
Integrated AMD RDNA 2 graphics (Actual support may vary by CPU)
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Connector & Ports:
1 x HDMI Port
1 x DisplayPort 1.4
USB:
1 x USB 3.2 Gen2 TypeC (Rear)
1 x USB 3.2 Gen2 TypeA (Rear)
1 x USB 3.2 Gen1 TypeC (Front)
6 x USB 3.2 Gen1 (2 Rear, 4 Front)
8 x USB 2.0 (4 Rear, 4 Front)
LAN Port: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Dragon RTL8125BG
Supported Storage:
1 x Blazing M.2 Socket (M21, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode
1 x Hyper M.2 Socket (M22, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
4 x SATA3 6.0 Gb/s Connectors
RAID:
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Product Description

Experience topnotch performance and features with the ASRock B650M PG Riptide AMD AM5 Micro ATX Motherboard. This motherboard is designed to support AMD’s Ryzen 8000 & 7000series processors with up to 16 Zen 4 cores and dualchannel DDR5 memory, with a maximum memory capacity of up to 128GB.

The ASRock B650M PG Riptide features a robust 12+2+1 Power Phase, Dr.MOS design that incorporates the latest SPS (Smart Power Stage) technology. Enjoy highquality audio with Nahimic Audio, which offers an engaging listening experience with vibrant and rich details.

This motherboard is perfect for gamers, with features such as:
Lightning Gaming Ports for highspeed mice/keyboard connectivity
Builtin RGB illumination and onboard RGB headers for customizable LED devices
Blazing M.2 for ultrafast SSDs with a breathtaking 128GB/s transfer speed
Extra large aluminum alloy M.2 heatsink for effective heat dissipation

The ASRock B650M PG Riptide also comes with a range of connectivity options, including:
2.5 Gigabit LAN for fast networking
USB 3.2 Gen2 TypeC and TypeA ports for nextgeneration devices
HDMI and DisplayPort for 4K resolution at 120Hz

Backed by a 3year warranty, the ASRock B650M PG Riptide is a reliable and highperformance motherboard that’s perfect for gamers and PC enthusiasts in Bangladesh. Upgrade your system with this featurepacked motherboard and experience the best of what AMD has to offer.
