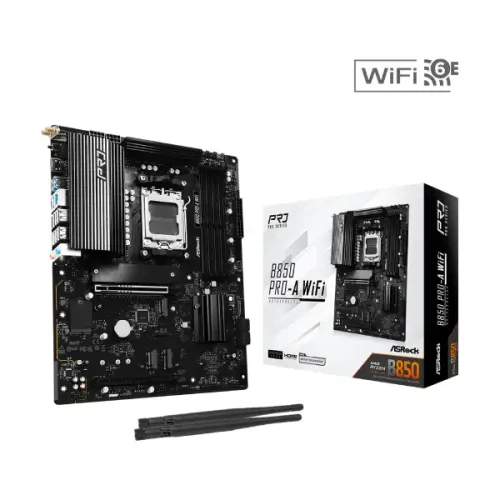

ASRock B850 Pro-A WiFi AM5 DDR5 ATX Motherboard

Product Specifications

Supported CPU: AMD Socket AM5 Ryzen 9000, 8000, and 7000 Series Processors
Chipset: AMD B850
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
Form Factor: ATX Form Factor: 12.0in x 9.6in, 30.5 cm x 24.4 cm 8 Layer PCB
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Memory Type: Dual Channel DDR5 Memory Technology
Memory Slots: 4 x DDR5 DIMM Slots
Maximum Memory: 256GB
Graphics: Integrated AMD RDNA graphics (Actual support may vary by CPU)
LAN Port: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG
Wireless Communication: 802.11axe WiFi 6E Module, Bluetooth 5.2

Expansion Slots

PCIe Slots: 1 x PCIe 5.0 x16 Slot, 1 x PCIe 4.0 x16 Slot
M.2 Slots: 4 x M.2 Slots (M21, M22, M23, M24)

Connector & Ports

USB Ports: 1 x USB 3.2 Gen2 TypeC, 1 x USB 3.2 Gen1 TypeC, 4 x USB 3.2 Gen1 TypeA, 6 x USB 2.0
HDMI: 1 x HDMI 2.1 TMDS/FRL 8G Compatible

Product Description

Upgrade your desktop experience with the ASRock B850 ProA WiFi AM5 DDR5 ATX Motherboard, designed to support AMD Ryzen 9000, 8000, and 7000 series processors on the Socket AM5 architecture. This powerful motherboard features an advanced 8layer ATX PCB, AMD B850 chipset, and supports up to 256GB of DDR5 RAM with memory speeds reaching 8000+ MHz (OC).

The ASRock B850 ProA WiFi Motherboard offers toptier expansion options, including a PCIe 5.0 x16 slot, a PCIe 4.0 x16 slot, and a KeyE M.2 slot for WiFi modules. Its storage interface features four M.2 slots, including Blazing Gen5x4, Hyper Gen4x4, and Ultra Gen3x4, plus four SATA3 ports, with full RAID support for both NVMe and SATA drives.

Enjoy stunning graphics with integrated AMD RDNA graphics (CPUdependent) and HDMI 2.1 output at 4K 120Hz. The motherboard also features a USB 3.2 Gen1 TypeC port that supports DP 1.4 HBR3 for up to 4K 60Hz via DisplayPort Alt Mode.

The ASRock B850 ProA WiFi Motherboard provides fast network performance with 2.5G Dragon RTL8125BG LAN and WiFi 6E (802.11axe), along with Bluetooth 5.2. The rear I/O options include dual antenna ports, HDMI, USB TypeC (Gen2 and Gen1 with DPalt), USB 3.2 Gen1, USB 2.0, LAN, and HD audio jacks.

Engineered with a 14+2+1 phase 80A Dr.MOS power design, PCIe Gen5 lanes for both GPU and SSDs, and extensive thermal and durability enhancements, the ASRock B850 ProA WiFi AM5 DDR5 ATX Motherboard offers unmatched performance, connectivity, and reliability for modern AM5 desktop builds.

Key Features:
Supports AMD Ryzen 9000, 8000, and 7000 series processors
Advanced 8layer ATX PCB
Supports up to 256GB of DDR5 RAM
PCIe 5.0 x16 slot, PCIe 4.0 x16 slot, and KeyE M.2 slot
Four M.2 slots and four SATA3 ports with RAID support
Integrated AMD RDNA graphics
2.5G Dragon RTL8125BG LAN and WiFi 6E
Bluetooth 5.2
USB 3.2 Gen2 TypeC, USB 3.2 Gen1 TypeC, and USB 2.0 ports
