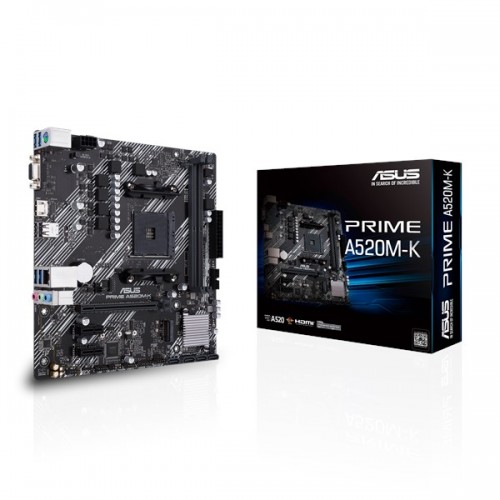

Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard

##

ASUS Prime A520M-K Motherboard Specification

### Basic Information
* Supported CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
* Chipset: AMD A520
* BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
* Form Factor: mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )

### Expansion Slots
* PCI:
+ AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors: 1 x PCIe 3.0 x16 (x16 mode)
+ AMD A520 Chipset: 2 x PCIe 3.0 x1

### Memory
* Type: Dual Channel DDR4 Memory Technology
* Slots: 2 x DIMM
* Supported Memory:
+ 4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
* Maximum Memory: 64GB, DDR4

### Connector & Ports
* HDMI: 1 x HDMI 2.1 (4K@60Hz)
* D-Sub: 1 x D-Sub
* USB:
+ Rear USB Port ( Total 6 ):
– 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
– 2 x USB 2.0 port(s)(2 x Type-A)
+ Front USB Port ( Total 6 ):
– 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
– 4 x USB 2.0 port(s)(4 x Type-A)
* LAN Port: Realtek RTL8111H 1GB Ethernet ASUS LANGuard
* Supported Storage:
+ Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
+ AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors:
– 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
+ AMD A520 Chipset:
– 4 x SATA 6Gb/s port(s)
* RAID: Support Raid 0, 1, 10
* Audio: Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
* Internal I/O Ports:
+ 1 x CPU Fan connector(s)
+ 1 x Chassis Fan connector(s)
+ 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
+ 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
+ 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
+ 4 x SATA 6Gb/s connector(s)
+ 1 x S/PDIF out header(s)
+ 1 x 24-pin EATX Power connector(s)
+ 1 x 8-pin EATX 12V Power connectors
+ 1 x Front panel audio connector(s) (AAFP)
+ 1 x Clear CMOS jumper(s)
+ 1 x System panel connector
+ 1 x COM port header
+ 1 x Speaker connector

### Others
* Special Features:
+ ASUS 5X PROTECTION III
+ ASUS DIGI+ VRM
+ ASUS LANGuard
+ ASUS Overvoltage Protection
+ ASUS SafeSlot Core
+ ASUS Stainless-Steel Back I/O
* Bundled Software:
+ ASUS Exclusive Software Armoury Crate
+ AI Suite 3
+ Performance And Power Saving Utility TurboV EVO
+ EPU
+ Digi+ VRM
+ Fan Xpert 2+
+ EZ update
+ ASUS CPU-Z
+ AI Charger
+ DAEMON Tools
+ Norton Anti-virus software (Free Trial for 60 days)
+ WinRAR UEFI BIOS
+ ASUS EZ DIY
+ ASUS CrashFree BIOS 3
+ ASUS EZ Flash 3
+ ASUS UEFI BIOS EZ Mode

##

Product Description

Unleash Your System’s Potential with ASUS Prime A520M-K

The ASUS Prime A520M-K motherboard is designed to provide a robust and reliable foundation for your PC build. With its AMD A520 chipset and support for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors, this motherboard offers a solid base for both everyday users and DIY PC builders.

Key Features:

* **Flexible Cooling Control**: The motherboard features a comprehensive cooling system, including hybrid fan headers and multiple temperature sources, to keep your system running smoothly and quietly.
* **Enhanced Audio**: Enjoy immersive sound with the Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC, featuring audio shielding and separate layers for left and right tracks.
* **Fast Connectivity**: With four rear-panel USB Type-A connectors supporting fast USB 3.2 Gen 1 connectivity, you can easily connect your peripherals and enjoy rapid data transfer.
* **Armoury Crate**: This exclusive software provides control over settings for ASUS products, including keyboard and mouse preferences, to help you customize your system.

Warranty and Support

The ASUS Prime A520M-K motherboard comes with a 3-year warranty, providing peace of mind and protection for your investment.

Price in Bangladesh

The price of the ASUS Prime A520M-K motherboard in Bangladesh may vary depending on the retailer and availability. However, you can expect to find it in the range of BDT 12,000 to BDT 15,000.

Conclusion

The ASUS Prime A520M-K motherboard offers a great balance of performance, features, and reliability, making it an excellent choice for anyone looking to build a new PC or upgrade their existing system. With its robust power design, comprehensive cooling system, and intuitive software features, this motherboard is sure to meet your needs and exceed your expectations.
