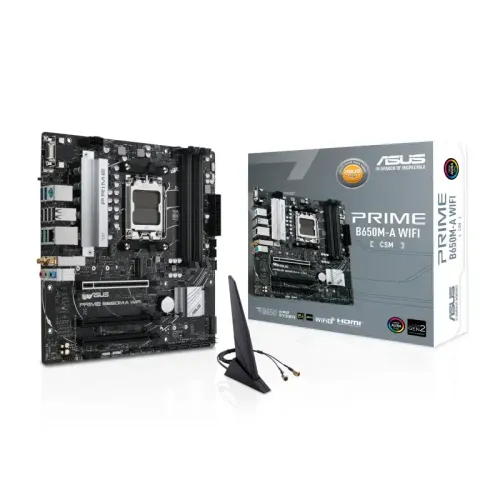

Asus PRIME B650M-A WIFI-CSM DDR5 AMD AM5 Micro-ATX Motherboard

Product Specifications

Supported CPU: AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors
Chipset: AMD B650 Chipset
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor: mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
PCI: 1 x PCIe 4.0 x16 slot (supports x16 mode), 2 x PCIe 4.0 x16 slots (support x1 mode)
Memory: DDR5, 4 DIMMs, 128GB
Graphics: 1 x DisplayPort, 1 x VGA port, 1 x HDMI port
LAN Port: 1 x Realtek 2.5Gb Ethernet
Wireless Communication: WiFi 6 2×2 WiFi 6 (802.11 a/b/g/n/ac/ax), Bluetooth v5.2
Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports

Product Description

Unleash the full potential of your AMD Ryzen 8000 & 7000 series CPU with the Asus PRIME B650MA WIFICSM Motherboard, a cuttingedge Corporate Stable Model designed for commercial use. This microATX motherboard boasts a robust power design, comprehensive cooling solutions, and intelligent tuning options to maximize productivity.

Experience exceptional performance with the PRIME B650MA WIFICSM’s 6layer PCB design, multiple onboard heatsinks, and hybrid fan headers. The VRM heatsink and thermal pads ensure optimal cooling performance, while the Fan Xpert 2+ software and UEFI BIOS provide comprehensive cooling controls.

This featurerich motherboard offers a range of connectivity options, including Realtek 2.5Gb Ethernet, WiFi 6, DisplayPort, VGA, HDMI, SATA 6 Gbps, and USB 3.2 Gen 2 ports. With a total of two M.2 slots, you can enjoy datatransfer speeds of up to 128Gbps via PCIe 5.0.

The Asus PRIME B650MA WIFICSM Motherboard is built to last, with a durable design and highquality components. Backed by a 3year warranty, this motherboard is an excellent choice for businesses and individuals seeking a reliable and highperformance solution.

Key Features:

Supports AMD Ryzen 8000 & 7000 series processors for socket AM5
Robust power design and comprehensive cooling solutions
Intelligent tuning options for optimal performance
6layer PCB design for improved heat management
Multiple onboard heatsinks and hybrid fan headers
Realtek 2.5Gb Ethernet, WiFi 6, and Bluetooth v5.2
2 x M.2 slots, 4 x SATA 6Gb/s ports, and USB 3.2 Gen 2 ports

Upgrade your system with the Asus PRIME B650MA WIFICSM Motherboard and experience the perfect blend of performance, reliability, and features.
