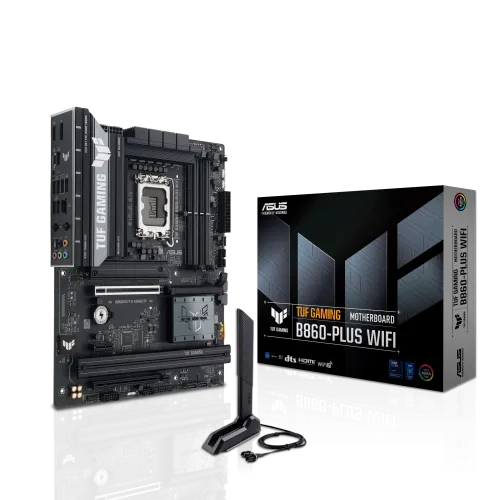

Asus TUF GAMING B860-PLUS WIFI LGA 1851 ATX Motherboard

Product Specifications

Supported CPU: Intel Core Ultra Processors (Series 2), LGA1851 Socket
Chipset: INTEL B860
BIOS: 2 x 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jackdetection, Multistreaming, Front Panel Jackretasking Supports up to 24Bit/192 kHz playback
Expansion Slots: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (x4 mode), 1 x PCIe 4.0 x1 slot
M.2 Socket: 3x M.2
Memory Type: DDR5
Memory Slots: 4
Supported Memory: 4 x DIMM slots, max. 256GB, DDR5 Support up to 8666+ MT/s (OC), NonECC, Unbuffered
Graphics: 1 x DisplayPort, 1 x HDMI port, 1 x USB 20Gbps port (USB TypeC) supports DisplayPort video output
Connector & Ports: 1x HDMI 2.1, 1x DisplayPort 1.4a, 8 x USB ports, 1 x Realtek 2.5Gb Ethernet TUF LANGuard, WiFi 7 2×2 WiFi 7 (802.11be)
Supported Storage: 3 x M.2 slots, 4 x SATA 6Gb/s ports
RAID: SATA RAID 0/1/5/10

Product Description

Unleash your system’s full potential with the Asus TUF GAMING B860PLUS WIFI LGA 1851 ATX Motherboard, engineered to deliver exceptional performance, durability, and versatility. This motherboard is designed to support Intel Core Ultra Processors (Series 2) with the LGA 1851 socket, ensuring a powerful computing experience.

The Asus TUF GAMING B860PLUS WIFI features a robust Intel B860 chipset, offering highquality performance and reliability. With 4 DIMM slots, it supports up to 256GB of DDR5 memory, with speeds of up to 8666+ MT/s (OC), providing an excellent memory performance experience. The motherboard also supports Intel Extreme Memory Profile (XMP) and ASUS Enhanced Memory Profile III (AEMPIII) for further versatility.

For stunning visuals, the motherboard includes DisplayPort and HDMI 2.1 ports, each supporting 4K resolution at 60Hz. A USB 20Gbps port (USB TypeC) with DisplayPort video output further enhances visual capabilities.

The motherboard features a range of expansion options, including 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (x4 mode), and 1 x PCIe 4.0 x1 slot. Storage configuration includes 3 x M.2 slots (supporting PCIe 5.0 x4 and PCIe 4.0 x4) and 4 x SATA 6Gb/s ports, ensuring fast data access and storage options.

The Asus TUF GAMING B860PLUS WIFI also boasts impressive connectivity features, including WiFi 7 with 2×2 (802.11be) up to 2.9Gbps, Bluetooth v5.4, and Realtek 2.5Gb Ethernet with TUF LANGuard for enhanced stability.

The motherboard’s audio capabilities are equally impressive, featuring Realtek 7.1 Surround Sound High Definition Audio CODEC with premium components like shielding, capacitors, and a dedicated PCB layer for superior sound quality.

ASUS TUF Protection ensures longlasting durability, including SafeSlot, overvoltage protection, and ESD Guards. ASUS Thermal Solutions enhances thermal efficiency with their M.2 and VRM heatsink designs.

The Asus TUF GAMING B860PLUS WIFI LGA 1851 ATX Motherboard is the perfect choice for building a gaming setup or a productive workstation, offering all the features and performance you need. Backed by a 3year warranty, this motherboard is a valuable investment for any PC enthusiast.

Buy the Asus TUF GAMING B860PLUS WIFI LGA 1851 ATX Motherboard from Star Tech in Bangladesh and experience the best of performance, durability, and value.
