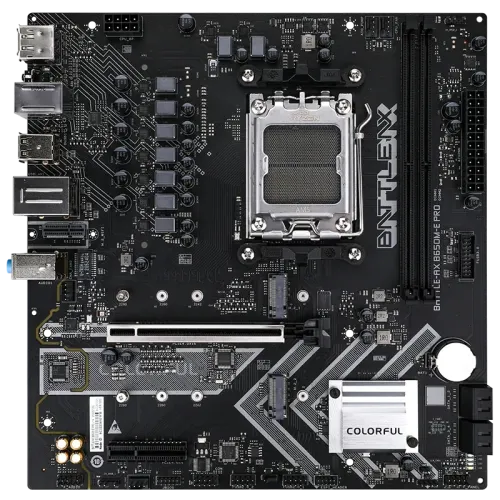

Colorful BATTLE-AX B650M-E PRO V14 AM5 mATX Motherboard

Product Specifications

Supported CPU: AMD Ryzen 7000/8000/9000 series processors (AM5 socket)
Chipset: AMD B650
BIOS: 256M UEFI, multilanguage support
Form Factor: MATX, 244mm x 235mm
Audio: Realtek ALC897, 5.1 channels

Expansion Slots:
1 PCIe 4.0 x16 slot
1 PCIe 4.0 x4 slot
M.2 Socket:
2 M.2 slots (M.21: PCIe 4.0 x4, CPU channel; M.22: PCIe 4.0 x4, PCH channel)
Supports 2242/2260/2280 M.2 SSD

Memory:
Type: DDR5
Slots: 2 x DIMM
Speed: Up to DDR57600 (OC)
Capacity: Up to 96GB (48GB per slot)
Supports XMP and EXPO memory technologies

Connector & Ports:
HDMI: 1 x HDMI 2.0 (up to 4K 60Hz)
DisplayPort: 1 x DP 1.2 (up to 4K 60Hz)
USB: 4 x USB 2.0, 2 x USB 3.2 Gen 1
LAN: 1 x Gigabit Ethernet (RTL8111K)
Audio: 3 x Audio jacks

Storage:
2 x M.2 slots
4 x SATA 6Gb/s ports
Supports RAID 0, RAID 1, RAID 10

Product Description

The Colorful BATTLEAX B650ME PRO V14 AM5 mATX motherboard is a powerhouse designed for AMD Ryzen 7000, 8000, and 9000 series processors. It offers a solid foundation for gaming, productivity, and creative tasks. With support for up to 96GB of DDR5 memory, speeds of up to DDR57600 (OC), and dualchannel design, this motherboard ensures smooth performance and efficient multitasking.

Featuring two M.2 slots and four SATA 6Gb/s ports, the BATTLEAX B650ME PRO V14 provides flexible storage options, supporting RAID 0, RAID 1, and RAID 10 configurations. Its expansion slots include one PCIe 4.0 x16 slot for graphics cards and one PCIe 4.0 x4 slot for addon cards.

The motherboard boasts comprehensive connectivity, including HDMI 2.0, DP 1.2, four USB 2.0 ports, two USB 3.2 Gen 1 ports, Gigabit LAN, and three audio jacks. The onboard headers offer additional connectivity options, such as USB pins, fan headers, and ARGB lighting compatibility.

The BATTLEAX B650ME PRO V14 features a 256M UEFI BIOS with multilanguage support, making configuration easy. It also offers advanced power management options, including wakeonLAN, USB wakeup, and scheduled startup. The motherboard’s monitoring capabilities include CPU and system fan speeds, temperatures, and voltages.

Backed by a 3year warranty, the Colorful BATTLEAX B650ME PRO V14 motherboard strikes a perfect balance between performance and expandability, making it an excellent choice for current PC builds.
