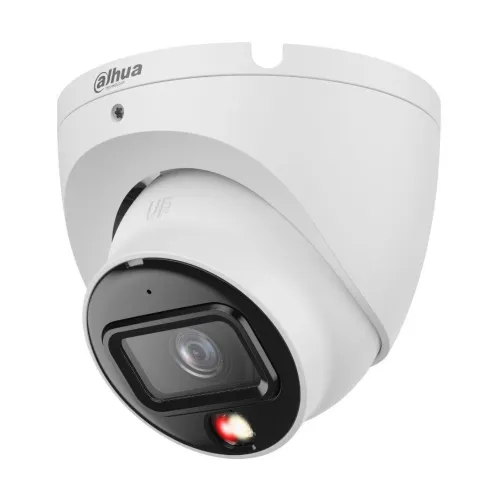

Dahua DH-IPC-HDW1639T-A-IL 6MP Smart Dual Light Fixed-Focal Dome IP Camera

Product Specifications

Camera:
Image Sensor: 1/2.7″ CMOS
Resolution: 3200 (H) × 1800 (V)
Shutter Speed: Auto/Manual 1/3 s1/100,000 s
Day & Night: Auto(ICR)/Color/B/W
Min. Illumination: 0.007 [email protected] (Color, 30 IRE); 0.0007 [email protected] (B/W, 30 IRE); 0 lux (Illuminator on)
SNR (dB): ＞56 dB
Angle Adjustment: Pan: 0°360°; Tilt: 0°78°; Rotation: 0°360°

Lens:
Lens Type: Fixedfocal
Lens Mount: M12
Focal Length: 2.8 mm
Aperture: F1.6
Field of View: 2.8 mm: H: 110°; V: 58°; D: 132°
Iris Type: Fixed
Close Focus Distance: 2.8 mm: 1.1 m (3.61 ft)
DORI Distance: 2.8 mm: 63.6 m( 208.66 ft), 25.4 m( 93.33 ft), 12.7 m( 41.67 ft), 6.4m ( 21.00 ft)

Illuminator:
IR LEDs: 1 (Multicore (IR + warm) light)
IR Distance: Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light)
Illuminator Control: Auto;Manual

Video:
Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Resolution: 6M (3200 × 1800); 4M (2880 × 1620/2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Main Stream: 3200 × 1800@(120 fps)/2688 × 1520@(125/30 fps)
Sub Stream: 704 × 576@(125 fps)/704 × 480@(130 fps)
Smart Codec: Smart H.265+; Smart H.264+
Video Frame Rate: Main stream: 3200 × 1800@(120 fps)/2688 × 1520@(125/30 fps) sub stream: 704 × 576@(125 fps)/704 × 480@(130 fps)
Stream Capability: 2 streams
Bit Rate Control: VBR;CBR
Video Bit Rate: H.264: 32 kbps8192 kbps; H.265: 12 kbps8192 kbps

Audio:
Audio Compression: G.711a; G.711Mu; PCM; G.726
Builtin Microphone: Yes, builtin Mic

Storage:
Network Storage: FTP

Network:
Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Interoperability: ONVIF (Profile S & Profile T); CGI
API: Yes
User/Host: 20 (Total bandwidth: 48 M)
Client: iOS;Android
Web Browser: IE; Chrome; Firefox

Interface:
Network Interface: RJ45 (10/100 BaseT)

Alarm:
General Alarm: Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception

Environment:
Operating Temperature: 40 °C to +60 °C (40 °F to +140 °F)
Operating Humidity: ≤95%(RH), noncondensing
Storage Temperature: 40 °C to +60 °C (40 °F to +140 °F)
Storage Humidity: ≤95%(RH), noncondensing
Water Protection: IP67

Power:
Power Supply: 12 VDC/PoE (802.3af)
PoE Standard: 802.3af
Power Consumption: Basic: 2 W (12 VDC), 2.9 W (PoE); Max. : 4 W (12 VDC); 5.3 W (PoE) (H.265 + intelligence on+ DWDR + illuminator intensity)

Physical Information:
Casing Material: Metal
Dimension: 85.6 mm × Φ94.0 mm (3.37″ × Φ3.70″)
Weight: Net Weight: 0.34 kg (0.75 lb) Gross Weight: 0.45 kg (0.99 lb)

Product Description

The Dahua DHIPCHDW1639TAIL 6MP Smart Dual Light FixedFocal Dome IP Camera is a topnotch surveillance solution designed for both indoor and outdoor security needs. With its advanced imaging capabilities, intelligent features, and robust design, this camera is perfect for homes, offices, and industrial sites.

Equipped with a 1/2.7″ CMOS sensor, this Dahua IP Camera delivers a maximum resolution of 6MP (3200 × 1800), ensuring clear and detailed video footage. Its 2.8 mm fixedfocal lens with F1.6 aperture provides a wide 110° horizontal field of view and a close focus distance of 1.1 m, making it ideal for capturing highquality images.

The camera’s dual illumination system, featuring IR and builtin warm light, offers night vision up to 30 meters, enhanced by Smart Dual Light technology for superior image quality in lowlight conditions. Additionally, it supports human detection, motion detection, video tampering alerts, and privacy masking.

This Dahua DHIPCHDW1639TAIL 6MP Dome IP Camera also supports H.265/H.264 compression, multiple resolutions up to 6MP, and advanced features like DWDR, BLC, HLC, 3D noise reduction, and regionofinterest settings. With its builtin microphone, it allows for audio monitoring, and alerts include motion, tampering, and security exceptions.

Designed for durability, the camera features IP67 protection against dust and water and operates reliably in temperatures from 40°C to +60°C. Power options include PoE (802.3af) or 12V DC, and network support covers IPv4/IPv6, ONVIF, RTSP, HTTP, TCP, UDP, and more.

The Dahua DHIPCHDW1639TAIL 6MP Dome IP Camera is supported by Smart PSS Lite, DSS, DMSS, and DoLynk Care, ensuring secure, reliable, and intelligent surveillance. With its 1year warranty, you can trust Star Tech to provide you with the best security solutions.

Buy Dahua DHIPCHDW1639TAIL 6MP Dome IP Camera from Star Tech in Bangladesh and experience highquality surveillance solutions. Order online or visit your nearest Star Tech shop to get yours at the lowest price.
