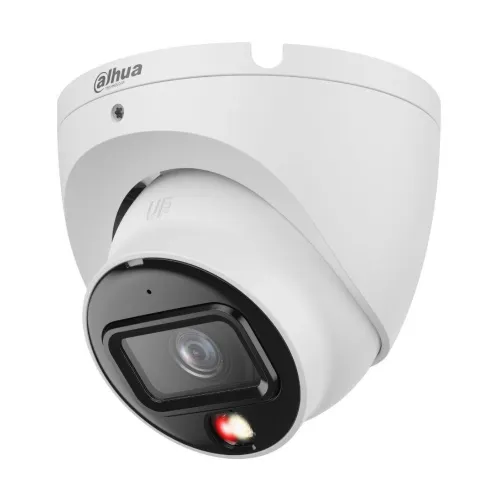

Dahua DH-IPC-HDW1839T-A-IL 8MP Smart Dual Light Fixed-Focal Dome IP Camera

Product Specifications

Camera:
Image Sensor: 1/2.7″ CMOS
Resolution: 8MP Max. Resolution: 3840 x 2160
Shutter Speed: Auto/Manual 1/3 s1/100,000 s
Day & Night: Auto(ICR)/Color/B/W
Min. Illumination: 0.008 [email protected] (Color, 30 IRE); 0.0008 [email protected] (B/W, 30 IRE); 0 lux (Illuminator on)
SNR (dB): ＞56 dB
Angle Adjustment: Pan: 0°360° Tilt: 0°78° Rotation: 0°360°

Lens:
Lens Type: Fixedfocal
Lens Mount: M12
Focal Length: 2.8 mm
Aperture: F1.6
Iris Type: 2.8 mm: H: 110°; V: 58°; D: 132°
Close Focus Distance: 2.8 mm: 1.5 m (4.92 ft)
DORI Distance: 2.8 mm: 84.8 m ( 278.22 ft), 33.9 m( 111.22 ft), 17.0 m( 55.77 ft), 8.5 m ( 27.89 ft)

Illuminator:
IR LEDs: 1 (Multicore (IR + warm) light)
IR Distance: Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light)
Illuminator Control: Auto;Manual

Video:
Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Resolution: 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 4M (2880 × 1620/2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Main Stream: 3840 × 2160@(120 fps)/2688 × 1520@(125/30 fps)
Sub Stream: 704 × 576@(125 fps)/704 × 480@(130 fps)
Smart Codec: Smart H.265+; Smart H.264+
Video Frame Rate: Main stream: 3840 × 2160@(120 fps)/2688 × 1520@(125/30 fps) Sub stream: 704 × 576@(125 fps)/704 × 480@(130 fps)
Stream Capability: 2 streams
Bit Rate Control: CBR/VBR
Video Bit Rate: H.264: 32 kbps8192 kbps; H.265: 12 kbps8192 kbps

Audio:
Audio Compression: G.711a; G.711Mu; PCM; G.726
Builtin Microphone: Yes, builtin Mic

Storage:
Network Storage: FTP

Network:
Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Interoperability: ONVIF (Profile S & Profile T); CGI
API: Yes
User/Host: 6 (Total bandwidth: 48 M)
Client: iOS;Android
Web Browser: IE; Chrome; Firefox

Interface:
Network Interface: RJ45 (10/100 BaseT)

Alarm:
General Alarm: Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception

Environment:
Operating Temperature: 40 °C to +55 °C (40 °F to 131 °F)
Operating Humidity: ≤95%(RH), noncondensing
Storage Temperature: 40 °C to +55 °C (40 °F to 131 °F)
Storage Humidity: ≤95%(RH), noncondensing
Water Protection: IP67

Power:
Power Supply: 12 VDC/PoE (802.3af)
PoE Standard: 802.3af
Power Consumption: Basic: 2.5 W (12 VDC), 3.5 W (PoE); Max.: 4.5 W (12 VDC), 5.8 W (PoE)

Physical Information:
Casing Material: Metal
Dimension: 85.6 mm × Φ94.0 mm (3.37″ × Φ3.70″)
Weight: Net Weight: 0.35 kg (0.77 lb) Gross Weight: 0.46 kg (1.01 lb)

Warranty Information:
Warranty: 1 Year

Product Description

The Dahua DHIPCHDW1839TAIL 8MP Smart Dual Light FixedFocal Dome IP Camera is a highperformance surveillance solution designed to deliver crystalclear imaging, smart monitoring features, and robust durability. This camera is perfect for a wide range of applications, from residential security to commercial installations.

Equipped with a 1/2.7″ CMOS sensor, this Dahua IP Camera captures video at an impressive 8MP (3840 × 2160) resolution. The smart dual light technology, featuring both infrared and builtin warm light, ensures exceptional night vision capabilities of up to 30 meters (98.43 ft). The illumination automatically adjusts to maintain optimal video quality in lowlight conditions.

The fixed 2.8 mm lens offers a wide 110° horizontal field of view and impressive DORI distances, allowing for accurate detection, observation, recognition, and identification of objects at various distances.

The Dahua DHIPCHDW1839TAIL supports H.265/H.264/MJPEG compression and dual streaming. It also features DWDR, 3D noise reduction, BLC, HLC, and smart illumination. These capabilities provide exceptional clarity and efficient bandwidth usage across multiple resolutions.

Key features include:

Smart Detection: Human detection, motion detection, and video tampering alerts enhance surveillance capabilities.
Advanced Cybersecurity: Video and configuration encryption, HTTPS, account lockout, and trusted execution ensure a secure system.
Durability: The IP67rated housing protects against dust and water, making it suitable for harsh outdoor conditions.
Power and Connectivity: Supports 12V DC or PoE (802.3af) power supply and integrates with Smart PSS Lite, DSS, DMSS, and mobile apps for iOS and Android.

The Dahua DHIPCHDW1839TAIL 8MP Dome IP Camera comes with a 1year warranty. Purchase this premium surveillance solution from Star Tech in Bangladesh for reliable performance and peace of mind.
