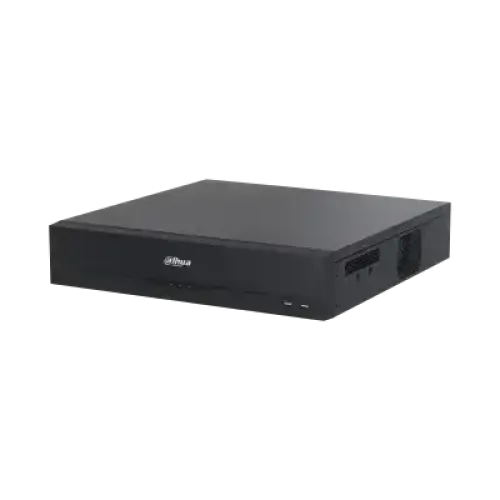

Dahua NVR5864-EI 64 Channels NVR

Product Specifications

Main Processor: Industrialgrade processor
Operating System: Embedded Linux
Interface: 1x eSATA, 1x RS232, 2x RS485, 2x HDMI, 2x VGA, 2x Network Port, 4x USB, 8x SATA
Resolution: 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF
Decoding Capacity: AI disabled: 2channel 32 MP@20 fps; 2channel 24 MP@20 fps; 4channel 16 MP@30 fps; 5channel 12 MP@30 fps; 8channel 8 MP@30 fps; 12channel 5 MP@30 fps; 16channel 4 MP@30 fps; 32channel 1080p@30 fps. AI enabled: 1channel 32 MP@20 fps; 1channel 24 MP@20 fps; 2channel 16 MP@30 fps; 4channel 12 MP@30 fps; 4channel 8 MP@30 fps; 8channel 5 MP@30 fps; 12channel 4 MP@30 fps; 24channel 1080p@30 fps
MultiScreen Display: Main screen: 1/4/8/9/16/25/36/64. Sub screen: 1/4/8/9/16
Compression: Video Compression: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG. Audio Compression: G.711a; G.711u; PCM; G726
Playback Function: Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Backup Mode: USB device and network
Power Supply: 100240 VAC, 5060 Hz
Power Consumption: Total output of NVR is ≤ 13 W (without HDD)
Dimensions: 439.9 mm × 457.9 mm x 89.0 mm (17.32″ × 18.03″ × 3.50″) (W ×D × H)
Net Weight: 6.4 kg (14.11 lb)
Gross Weight: 9.01 kg (19.86 lb)

Product Description

The Dahua NVR5864EI is a topoftheline 64channel network video recorder engineered for advanced surveillance systems. It operates on an embedded Linux operating system, ensuring stability and security, and features both web and local GUI interfaces for userfriendly operation. Equipped with AI capabilities such as face detection, face recognition, perimeter security, and SMD Plus, this NVR offers superior performance and smart surveillance features.

Notably, it supports up to 20 face databases with a capacity for 20,000 photos, allowing for detailed facial analysis, including gender, age group, glasses, emotions, face masks, and beard detection. The SMD Plus technology enhances detection accuracy with secondary filtering for person and motor vehicle detection, significantly reducing false alarms triggered by environmental factors.

This NVR also supports up to 8 ANPR channels for vehicle license plate comparison and includes features like block listing and allow listing, making it an excellent choice for comprehensive security management. With support for 64 access channels, it offers flexible network bandwidth options based on AI usage.

The Dahua NVR5864EI features versatile video output options through two VGA and two HDMI ports, accommodating various resolutions. It ensures broad compatibility with thirdparty cameras through protocols like ONVIF, Panasonic, Sony, Axis, Arecont, Pelco, Canon, and Samsung.

Key features include:
Up to 16 simultaneous playback channels
Various recording modes (general, motion detection, intelligent, alert, and POS)
Disk group and RAID setups for data redundancy and high storage capacity

Durable and reliable, the Dahua NVR5864EI operates within a wide temperature range and high humidity, making it suitable for diverse environments.

Purchase the Dahua NVR5864EI 64 Channels NVR from Star Tech in Bangladesh for topnotch surveillance solutions. Enjoy the benefits of highquality performance, advanced AI features, and extensive compatibility, all backed by a 1year warranty.
