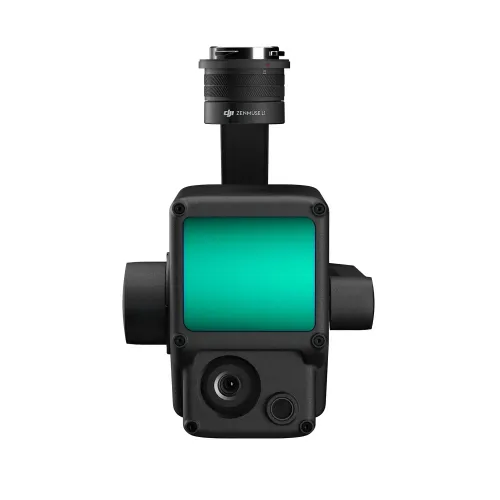

DJI Zenmuse L1 Drone Camera

Product Specifications

Stabilization: 3axis (tilt, roll, pan)
Angular Vibration Range: 0.01°
Gimbal Mount: Detachable DJI SKYPORT
Mechanical Range: Tilt: 120° to +30°; Pan: ±320°
Operation Modes: Follow/Free/Recenter

Sensor: RGB Mapping Camera
Sensor Size: 1 inch
Effective Pixels: 20 MP
Focal Length: 8.8 mm / 24 mm (Equivalent)
Aperture Range: f/2.8 f/11

ISO Range:
Video: 100 3200 (Auto), 100 6400 (Manual)
Photo: 100 3200 (Auto), 100 12800 (Manual)

Shutter Speed:
Mechanical: 1/2000 8 s
Electronic: 1/8000 8 s

Image Size: 5472×3078 (16:9); 4864×3648 (4:3); 5472×3648 (3:2)

Supported File Systems: FAT (≤32 GB); exFAT (>32 GB)
Photo Format: JPEG
Video Format: MOV, MP4
Video Resolution: H.264, 4K: 3840×2160 30p

SD Cards:
Recommended: SanDisk Extreme 128GB UHSI Speed Grade 3, SanDisk Extreme 64GB UHSI Speed Grade 3, SanDisk Extreme 32GB UHSI Speed Grade 3, SanDisk Extreme 16GB UHSI Speed Grade 3, Lexar 1066x 128GB U3, Samsung EVO Plus 128GB
Max Capacity: 256 GB

Warranty: No Warranty

Product Description

The DJI Zenmuse L1 Drone Camera is a cuttingedge solution for capturing highaccuracy 3D data. Integrating a Livox Lidar module, a highaccuracy IMU, and a 1inch CMOS sensor camera on a 3axis stabilized gimbal, it provides exceptional efficiency and unparalleled accuracy. When used with Matrice 300 RTK and DJI Terra, the L1 forms a complete solution for realtime 3D data capture, efficiently capturing complex structures and delivering highly accurate reconstructed models.

Key features include:

Exceptional Efficiency: Generates truecolor point cloud models in realtime or acquires 2 km² of point cloud data in a single flight.
Unparalleled Accuracy: Centimeteraccurate reconstructions thanks to highaccuracy IMU, vision sensor, and GNSS data incorporation.
Durability: IP44 rating allows operation in rainy or foggy environments, and the Lidar module’s active scanning method enables nighttime flights.
Point Cloud LiveView: Realtime point clouds provide immediate insights for critical decisionmaking.
Measurement and Annotation: Acquire critical dimensions on the point cloud model using measurements and annotations.
Onestop Postprocessing: DJI Terra fuses IMU and GNSS data for point cloud and visible light calculations, generating reconstructed models and accuracy reports.
