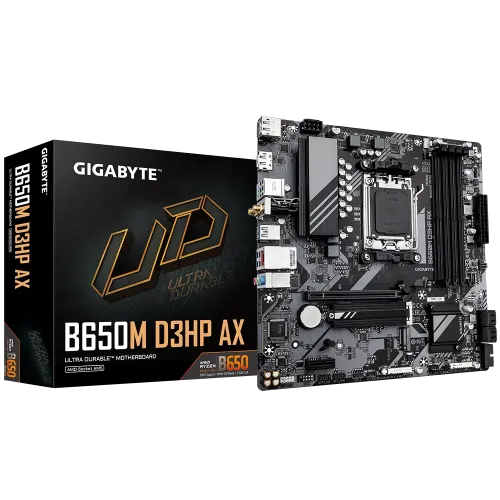

GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard

Product Specifications

Supported CPU: AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors
Chipset: AMD B650
BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS
Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Audio: Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1channel
PCIe x16 Slot: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU (PCIe 4.0 x16/x8/x4 modes)
PCIe x1 Slot: 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
Memory Type: DDR5
Memory Slots: 4 DIMMs
Supported Memory: 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules, Dual channel, nonECC Unbuffered, AMD EXPO and XMP support
Maximum Memory: 192GB
Integrated Graphics: AMD Radeon™ Graphics (CPU dependent)
Display Ports: 2 x DisplayPorts, supporting a maximum resolution of 3840×2160@144 Hz (DP 1.4)
HDMI Port: 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz (HDMI 2.1, HDCP 2.3)
USB (Back Panel): 1 x USB TypeC (3.2 Gen 1), 3 x USB 3.2 Gen 1, 2 x USB 2.0/1.1
USB (Internal Headers): 1 x USB TypeC (3.2 Gen 1), 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1
LAN Port: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication: Realtek WiFi 6E RTL8852CE (WiFi a, b, g, n, ac, ax, 2.4/5/6 GHz), BLUETOOTH 5.3
M.2 Connectors: 1 x M.2 (CPU integrated, PCIe 4.0 x4/x2), 1 x M.2 (Chipset integrated, PCIe 4.0 x4/x2)
SATA Connectors: 4 x SATA 6Gb/s connectors
RAID Support: RAID 0, RAID 1, and RAID 10 for NVMe SSD and SATA storage devices
Internal I/O Ports: 24pin ATX, 8pin ATX 12V, CPU fan, 2 system fan, 2 addressable LED, 1 RGB LED, Front panel, Front audio, QFlash Plus button, Reset jumper, Clear CMOS jumper, TPM header
Back Panel Connectors: PS/2 keyboard/mouse, USB TypeC (3.2 Gen 1), 3 USB 3.2 Gen 1, 2 USB 2.0/1.1, HDMI, 2 DisplayPorts, RJ45, 3 audio jacks
Special Features: GIGABYTE Control Center (GCC), QFlash, QFlash Plus
Bundled Software: Norton Internet Security (OEM version), LAN bandwidth management software
Manufacturing Warranty: 3 Years

Product Description

Unlock the full potential of your nextgen AMD build with the GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard, a “musthave accessory” for discerning users in Bangladesh seeking “best performance” and unwavering reliability. Engineered for AMD Ryzen 8000 and 7000 Series Processors on the AM5 socket, this motherboard is meticulously crafted to deliver a seamless and powerful computing experience, whether you’re gaming, creating, or working on demanding tasks.

Experience incredible speed and responsiveness with support for lightningfast DDR5 memory, capable of reaching an astonishing 7600MHz (OC). With 4 DIMM slots accommodating up to 192GB of RAM, you can tackle the most intensive multitasking with ease, ensuring your system runs smoothly and efficiently. This “high quality” Micro ATX board boasts a “premium design” that not only looks sleek but also integrates advanced features to elevate your PC.

Connectivity is paramount, and the GIGABYTE B650M D3HP AX delivers. Stay ahead with integrated Realtek WiFi 6E, offering robust 2.4/5/6 GHz triband support for unparalleled wireless speeds and lowlatency online gaming. The Realtek 2.5GbE LAN provides a blazingfast wired connection, guaranteeing stable and rapid data transfer. A comprehensive array of USB ports, including multiple USB 3.2 Gen 1 TypeC and TypeA ports, ensures compatibility with all your peripherals and provides rapid data transfer.

Storage won’t be a bottleneck thanks to two PCIe 4.0 x4 M.2 connectors, supporting the latest NVMe SSDs for incredibly fast boot times and application loading. Coupled with four SATA 6Gb/s ports and RAID 0, 1, 10 support for both NVMe and SATA, you have flexible options for massive, highspeed storage configurations. For visual enthusiasts, tripledisplay support via HDMI 2.1 and dual DisplayPorts (DP 1.4) allows for an immersive multimonitor setup, perfect for productivity or entertainment.

Built with a “durable build” philosophy, this motherboard features robust power delivery and GIGABYTE’s Smart Fan 6 technology, which includes multiple temperature sensors and hybrid fan headers to maintain optimal thermal performance under load. The EZLatch PCIe x16 Slot with its quickrelease design simplifies hardware installation and removal. Furthermore, the QFlash Plus feature allows for effortless BIOS updates without requiring a CPU, RAM, or graphics card, making system maintenance incredibly convenient. The GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard truly “fits your needs perfectly,” offering an exceptional blend of cuttingedge technology, robust performance, and userfriendly features designed for the modern PC builder.
