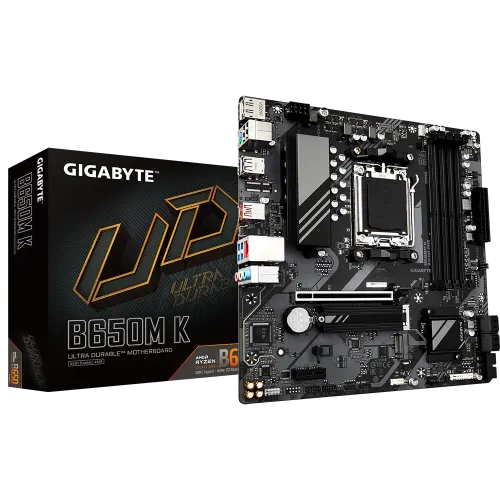

GIGABYTE B650M K AMD AM5 Micro-ATX Motherboard

Product Specifications

Supported CPU: AMD Socket AM5, support for: AMD Ryzen 8000 & 7000 Series Processors
Chipset: AMD B650
BIOS: 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Audio: Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1channel
Expansion Slots:
PCI Express: CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16, Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory:
Type: DDR5
Slots: 4 DIMMs
Supported Memory: Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
Maximum Memory: 192 GB
Graphics:
DisplayPort: 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
HDMI: 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Connector & Ports:
USB: CPU: 1 x USB TypeC port on the back panel, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 2 TypeA port (red) on the back panel, 2 x USB 2.0/1.1 ports on the back panel, Chipset: 1 x USB TypeC port with USB 3.2 Gen 1 support, available through the internal USB header, 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header), 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
LAN Port: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Storage: CPU: 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support), 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support), Chipset: 4 x SATA 6Gb/s connectors
RAID: RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio: 3 x Audio jacks
Internal I/O Ports:
Power Connectors: 1 x 24pin ATX main power connector, 1 x 8pin ATX 12V power connector
Fan Headers: 1 x CPU fan header, 2 x system fan headers
LED Headers: 1 x addressable LED strip header, 1 x RGB LED strip header
M.2 Connectors: 2 x M.2 Socket 3 connectors
SATA Connectors: 4 x SATA 6Gb/s connectors
USB Headers: 1 x USB TypeC header, with USB 3.2 Gen 1 support, 1 x USB 3.2 Gen 1 header, 1 x USB 2.0/1.1 header
TPM: 1 x Trusted Platform Module header (For the GCTPM2.0 SPI/GCTPM2.0 SPI 2.0 module only)

Product Description

Experience topnotch performance and advanced features with the GIGABYTE B650M K AMD AM5 MicroATX Motherboard. Designed to support AMD Ryzen 8000 & 7000series processors for socket AM5, this motherboard boasts a robust VRM design with direct 6+2+1 Phases Digital VRM Solution, ensuring stable power delivery to your CPU.

The GIGABYTE B650M K features advanced thermal solutions, including enlarged thermal heatsinks and M.2 Thermal Guard, to maintain optimal temperatures and prevent throttling. With a 2X copper PCB design, this motherboard effectively reduces component temperatures through high thermal conductivity and low impedance.

This motherboard offers a range of connectivity options, including 2.5G LAN, USB 3.2 Gen 2 ports, and multiple M.2 and SATA connectors. The Smart Fan 6 system provides precise control over fan speeds, ensuring your gaming PC stays cool and quiet.

The GIGABYTE B650M K also comes with a range of innovative features, including support for GIGABYTE Control Center (GCC), QFlash, and QFlash Plus. With a 3year warranty and backed by Star Tech’s reliable customer support, this motherboard is an excellent choice for anyone looking to build a highperformance gaming PC.

Buy the GIGABYTE B650M K AMD AM5 MicroATX Motherboard from Star Tech in Bangladesh and experience the best of performance, features, and value. With a wide range of GIGABYTE motherboards available, you’re sure to find the perfect one for your needs. Order online or visit your nearest Star Tech shop today!
