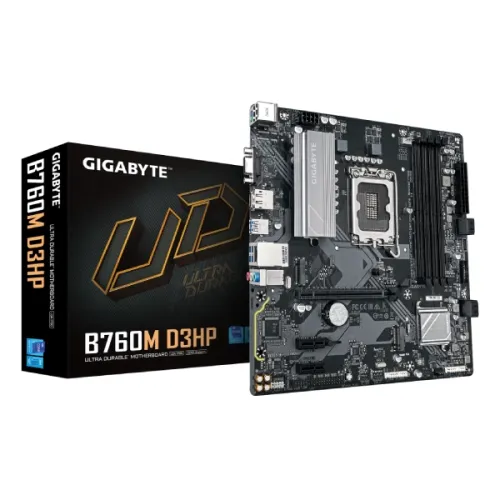

GIGABYTE B760M D3HP DDR5 Micro ATX Motherboard

Product Specifications

Supported CPU: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset: Intel B760 Express Chipset
BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Audio: Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1channel
Expansion Slots:
PCI: CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Memory:
Type: DDR5
Slots: 4
Supported Memory: Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Unbuffered DIMM 1Rx8/2Rx8 memory modules (operate in nonECC mode) Support for nonECC Unbuffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphics:
Graphics: Integrated Graphics ProcessorIntel HD Graphics support: 1 x DSub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support for native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3
Connector & Ports:
HDMI: 1 x HDMI port
Display Port (s): 1 x DisplayPort
DSub (s): 1 x DSub port
USB (s): Chipset: 1 x USB TypeC port with USB 3.2 Gen 1 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s): Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage:
CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2ACPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2PSB) 4 x SATA 6Gb/s connectors
RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio: 3 x audio jacks
Internal I/O Ports:
Internal I/O Connectors: 1 x 24pin ATX main power connector 1 x 8pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB TypeC header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GCTPM2.0 SPI/GCTPM2.0 SPI 2.0/GCTPM2.0 SPI V2 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x QFlash Plus button 1 x reset jumper 1 x Clear CMOS jumper

Product Description

The GIGABYTE B760M D3HP DDR5 Micro ATX Motherboard is a powerful and efficient platform for constructing a highperformance PC with the latest Intel Core CPUs. This motherboard supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors, utilizing the Intel B760 Express Chipset for high performance and hardware compatibility.

With four DDR5 DIMM slots, it can accommodate up to 256 GB of system memory, achieving speeds of up to 5600 MT/s with highend CPUs. The dualchannel memory design enables quicker data transfer, and users can make use of XMP functionality to maximize overclocking.

The motherboard features onboard Intel UHD Graphics compatibility, supporting tripledisplay output via DSub, HDMI 2.1, and DisplayPort 1.2, all of which can produce 4K images. For storage, it has two PCIe 4.0 x4 M.2 connections and four SATA 6Gb/s ports that enable RAID 0, 1, 5, and 10 for customizable storage configurations.

Expansion options include a PCIe 4.0 x16 slot for graphics cards or NVMe SSDs, as well as two PCIe 3.0 x1 slots for additional devices. A Realtek 1GbE LAN chip ensures reliable networking, while the Realtek High Definition Audio CODEC supports 7.1channel surround sound and S/PDIF Out.

The motherboard also features a robust internal I/O configuration, including fan headers, LED headers, and extensive USB connectivity, such as USB 3.2 Gen 1 TypeC, USB 3.2 Gen 1, and USB 2.0. Smart Fan 6 technology monitors temperature with hybrid fan headers and the FAN STOP feature, ensuring silent and economical operation.

QFlash Plus allows users to upgrade BIOS without installing a CPU or RAM, improving usability. The motherboard is powered by a longlasting Hybrid 4+1+1 Phase Digital VRM Solution, providing consistent and clean power for steady performance.

This Micro ATX form factor motherboard, measuring 24.4cm x 24.4cm, is perfect for tiny configurations while fully supporting Windows 10 and 11 64bit PCs. The GIGABYTE B760M D3HP DDR5 Motherboard is an excellent choice for gaming, productivity, and futureready PC setups, thanks to its powerful features, contemporary connections, and extensive CPU and memory compatibility.

Key Features:
Support for 14th, 13th, and 12th Gen Intel Core processors
Intel B760 Express Chipset
Four DDR5 DIMM slots, up to 256 GB system memory
PCIe 4.0 x16 slot for graphics cards or NVMe SSDs
Two PCIe 3.0 x1 slots for additional devices
Realtek 1GbE LAN chip and High Definition Audio CODEC

Benefits:
Highperformance platform for constructing powerful PCs
Efficient power delivery with Hybrid 4+1+1 Phase Digital VRM Solution
Extensive USB connectivity and Smart Fan 6 technology
QFlash Plus for easy BIOS upgrades
