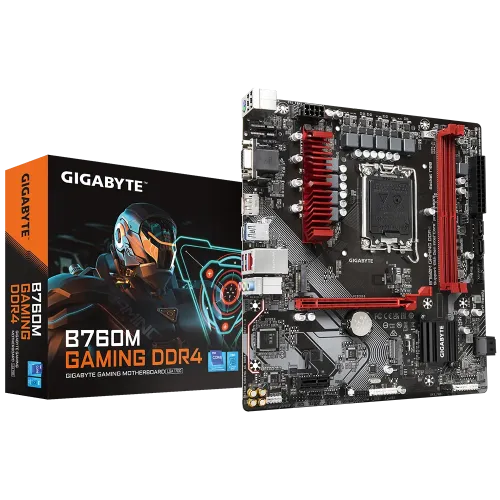

GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard

Product Specifications

Supported CPU: LGA1700 socket compatible with 12th, 13th & 14th Gen Intel Core, Pentium Gold & Celeron processors
Chipset: Intel B760 Express
Form Factor: Micro ATX (24.4 cm x 22.5 cm)
Memory Type: DDR4 (2 slots, dualchannel) up to 64 GB, 5333 MHz (OC)
Graphics Output: 1 × HDMI (4096×2160@60 Hz), 1 × DisplayPort (4096×2304@60 Hz), 1 × DSub
PCIe Slots: 1 × PCIe 4.0 x16 (GPU/NVMe), 1 × PCIe 3.0 x1
Storage: 2 × M.2 PCIe 4.0 x4, 4 × SATA 6 Gb/s, RAID 0/1/5/10 support
USB Ports: 1 × USBC (USB 3.2 Gen 1), 5 × USB 3.2 Gen 1, 2 × USB 2.0/1.1 (rear) + additional internal headers
LAN: Realtek 2.5 GbE (backward compatible to 1 GbE/100 Mbps)
Audio: Realtek HD Audio 7.1channel support, 3 × audio jacks, S/PDIF out
Power Delivery: Hybrid 6+2+1 Phase Digital VRM, 24pin ATX & 8pin CPU power connectors
Cooling: Smart Fan 6 with multiple temperature sensors and FAN STOP feature
BIOS: 128 Mbit AMI UEFI, QFlash & QFlash Plus (CPUfree update)
Security: TPM 2.0 header (compatible with GCTPM modules)
Software Bundle: Norton Internet Security (OEM) + LAN bandwidth management tool
Warranty: 3 years manufacturer warranty

Product Description

Experience high quality performance with the GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard the musthave accessory for Bangladeshi gamers and PC builders who demand premium design and durable build. Engineered for Intel’s 12th, 13th and 14thgeneration processors, this board fits your needs perfectly, delivering stable power through a Hybrid 6+2+1 Phase VRM and supporting up to 64 GB of ultrafast DDR4 memory (5333 MHz OC).

Enjoy best performance on your graphics setup with a PCIe 4.0 x16 slot and dualmonitor flexibility via HDMI, DisplayPort and DSub outputs. Lightningfast storage is at your fingertips with two PCIe 4.0 x4 M.2 slots and four SATA 6 Gb/s connectors, while RAID options keep your data safe.

Connectivity is comprehensive: a rear USBC 5 Gb/s port, multiple USB 3.2 Gen 1/2.0 ports, and a Realtek 2.5 GbE LAN chip ensure you stay online at top speed. The integrated Realtek audio codec provides crystalclear 7.1channel sound for immersive gaming sessions.

Advanced features like Smart Fan 6, QFlash Plus (BIOS update without CPU), and GIGABYTE Control Center give you full control over cooling, overclocking, and system tuning. Backed by a 3year warranty and bundled with Norton Internet Security, this motherboard offers unbeatable value at a competitive price in Bangladesh. Upgrade today and unleash the full potential of your PC build.
