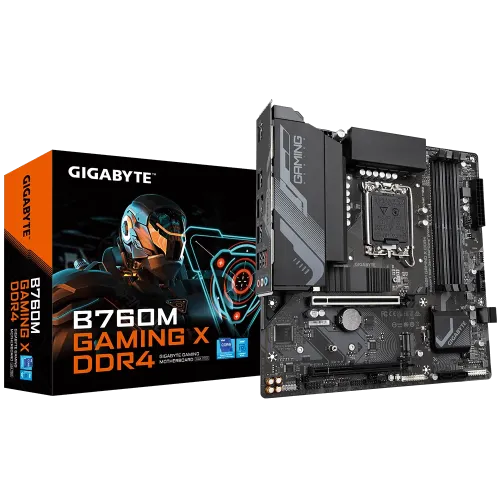

GIGABYTE B760M GAMING X DDR4 mATX Motherboard

Product Specifications

Supported CPU: LGA1700 socket 12th, 13th & 14th Gen Intel Core, Pentium Gold, Celeron
Chipset: Intel B760 Express
BIOS: 256 Mbit AMI UEFI, ACPI 5.0, QFlash Plus support
Form Factor: Micro ATX (24.4 cm × 24.4 cm)
Memory: 4 × DDR4 slots, up to 128 GB, supports 5333 MT/s (OC), dualchannel, XMP, ECC (nonECC mode)
Graphics Output: 1 × HDMI (4096×2160 @ 60 Hz), 1 × DisplayPort (4096×2304 @ 60 Hz) Intel HD Graphics
Expansion Slots: 1 × PCIe 4.0 x16 (fullspeed), 1 × PCIe 3.0 x4
M.2 Slots: 2 × PCIe 4.0 x4 (2280/22110) SSD support, with M.2 Thermal Guard
SATA Ports: 4 × SATA 6 Gb/s, RAID 0/1/5/10 supported
USB Ports: 1 × USB TypeC (USB 3.2 Gen 2, internal header), 5 × USB 3.2 Gen 1, 9 × USB 2.0/1.1 (back & internal)
LAN: Realtek 2.5 GbE RJ45 (autonegotiate 2.5 Gbps/1 Gbps/100 Mbps)
Audio: Realtek HD Audio, 2/4/5.1/7.1channel, S/PDIF Out, 3 × audio jacks, frontpanel header
Internal Connectors: 24pin ATX, 8pin ATX12V, CPU & 3 system fan headers, 2 × addressable LED strip, 2 × RGB LED strip, USBC header, Thunderbolt addin connectors, TPM header, QFlash Plus button, Reset & ClearCMOS jumpers
Special Features: Smart Fan 6 technology, iTE I/O controller, QFlash Plus for BIOS update without CPU/RAM/GPU, premium VRM 8+1+1 phase hybrid digital power design
Warranty: 3 years manufacturer warranty

Product Description

Experience high quality performance with the GIGABYTE B760M GAMING X DDR4 mATX motherboard the musthave accessory for every Bangladeshi PC builder seeking premium design and durable build. Engineered for Intel’s 12th, 13th and 14thgeneration processors, this board delivers best performance through an 8+1+1 phase hybrid digital VRM, ensuring stable power delivery even under heavy loads.

Enjoy lightningfast storage with dual PCIe 4.0 x4 M.2 slots protected by M.2 Thermal Guard, plus four SATA 6 Gb/s ports with RAID 0/1/5/10 support for ultimate data safety. The integrated Realtek HD Audio and 2.5 GbE LAN give you crystalclear sound and ultrafast network connectivity, perfect for gaming, streaming, and content creation.

Connectivity is limitless: a USB TypeC 10 Gb/s port, multiple USB 3.2 Gen 1 and USB 2.0 ports, HDMI and DisplayPort outputs, and addressable RGB/LED headers let you customize every look. Smart Fan 6 technology with hybrid fan headers keeps temperatures low, while QFlash Plus lets you update BIOS without installing a CPU, RAM, or GPU.

Fit your needs perfectly with DDR4 memory support up to 128 GB and speeds up to 5333 MT/s (OC), plus XMP profiles for effortless overclocking. Backed by a 3year warranty, this motherboard is a reliable, highperformance foundation for any build at the best price in Bangladesh. Upgrade today and unleash the full potential of your system!
