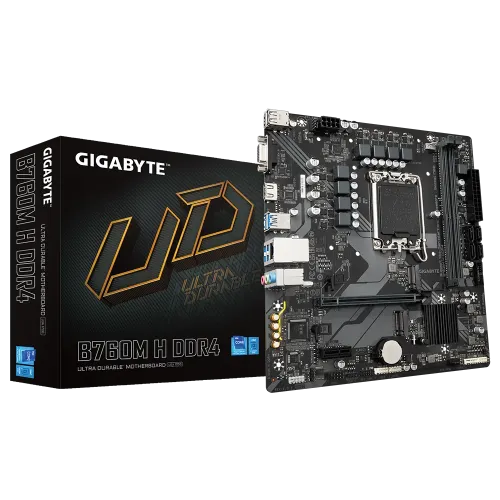

GIGABYTE B760M H DDR4 mATX Motherboard

Product Specifications

Supported CPU: LGA1700 socket: 14th, 13th, and 12th Gen Intel Core, Pentium Gold, Celeron Processors
Chipset: Intel B760 Express Chipset
BIOS: 1 x 128 Mbit flash, AMI UEFI BIOS
Form Factor: Micro ATX (23.0cm x 21.5cm)
Audio: Realtek Audio CODEC, High Definition Audio (2/4/5.1/7.1channel), S/PDIF Out support
PCI Express x16 Slot: 1 (CPU, PCIe 4.0, x16)
PCI Express x1 Slot: 1 (Chipset, PCIe 3.0, x1)
Memory Type: DDR4
Memory Slots: 2
Supported Memory: DDR4 3200/3000/2933/2666/2400/2133 MT/s, Dual Channel, XMP, ECC/nonECC Unbuffered DIMM
Maximum Memory: Up to 64GB (32GB single DIMM capacity)
Integrated Graphics: Intel HD Graphics, DSub (1920×1200@60 Hz), HDMI (4096×2160@60 Hz, HDMI 2.0, HDCP 2.3)
USB Ports: 6 x USB 3.2 Gen 1 (4 back panel, 2 internal), 6 x USB 2.0/1.1 (2 back panel, 4 internal)
LAN Port: Realtek GbE LAN (1 Gbps/100 Mbps)
Storage: 1 x M.2 (CPU, PCIe 4.0 x4/x2), 1 x M.2 (Chipset, PCIe 4.0 x4/x2), 4 x SATA 6Gb/s
RAID Support: RAID 0, RAID 1, RAID 5, RAID 10 (for SATA storage)
Audio Jacks: 3
Internal I/O: ATX power connectors, CPU/system fan headers, RGB LED strip header, M.2 connectors, SATA connectors, front panel/audio headers, S/PDIF Out header, USB 3.2 Gen 1 header, USB 2.0/1.1 headers, serial port header, Clear CMOS jumper
TPM: 1 x Trusted Platform Module header
Special Features: GIGABYTE Control Center (GCC) support, QFlash support
Bundled Software: Norton Internet Security (OEM), LAN bandwidth management software
Warranty: 3 years

Product Description

Unlock the full potential of your desktop PC with the GIGABYTE B760M H DDR4 mATX Motherboard, engineered for the latest Intel processors. Designed to support 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron CPUs with its LGA 1700 socket, this motherboard is your gateway to superior computing performance. Whether you’re a gamer, content creator, or a power user in Bangladesh, this board is built to deliver.

Experience unrivaled power delivery thanks to the Hybrid 6+1+1 Phases Digital VRM Solution, ensuring stable and reliable performance even under heavy loads. This premium design provides the consistent power your CPU needs for best performance. With Dual Channel DDR4 memory architecture supporting up to 64GB across two DIMM slots, you can leverage highspeed modules up to 3200 MT/s, complete with XMP Memory Profile support for effortless overclocking and maximum memory utilization. This feature ensures your system remains responsive and efficient, making it a musthave accessory for demanding applications.

Storage is redefined with dual PCIe 4.0 x4 M.2 connectors, providing lightningfast data transfer speeds for your NVMe SSDs, far surpassing traditional SATA drives. This ensures quick boot times and rapid application loading, making your workflow smoother than ever. The innovative EZLatch PCIe 4.0 x16 Slot with its Quick Release Design simplifies hardware installation and upgrades, offering unparalleled convenience.

Connectivity is robust with Realtek GbE LAN for a stable, highspeed internet connection, essential for online gaming and streaming. Integrated Intel HD Graphics with HDMI and DSub ports provide flexible display options, supporting resolutions up to 4K. The GIGABYTE B760M H also boasts an array of USB 3.2 Gen 1 and USB 2.0/1.1 ports, ensuring all your peripherals can connect seamlessly.

Keeping your system cool is paramount, and Smart Fan 6 technology ensures optimal thermal performance. Multiple temperature sensors and hybrid fan headers with FAN STOP functionality allow for precise fan control, maintaining a cool and quiet operation. This high quality motherboard is built with a durable build, ensuring longevity and consistent performance for years to come. It fits your needs perfectly, offering a comprehensive and reliable foundation for any modern PC build in Bangladesh.
