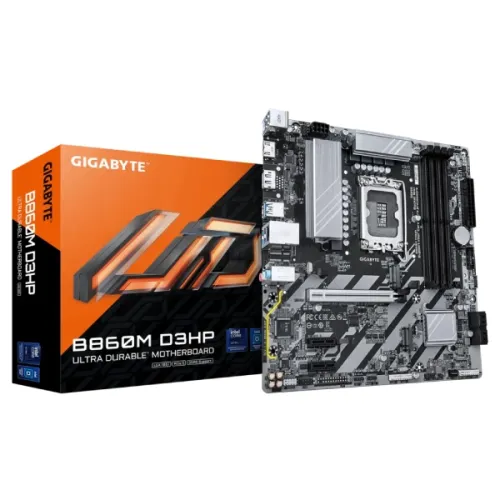

Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard

Product Specifications

Supported CPU: LGA1851 socket, Intel Core Ultra Processors, L3 cache varies with CPU
Chipset: Intel B860 Express Chipset
BIOS: 1 x 256 Mbit flash, Licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: Micro ATX, 24.4cm x 24.4cm
Audio: Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1channel
Expansion Slots:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
M.2 Socket:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
Memory:
Type: DDR5
Slots: 4 x DIMM
Supported Memory: up to 256 GB (64 GB single DIMM capacity) of system memory, Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
Graphics:
Integrated Graphics ProcessorIntel HD Graphics support
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
Connector & Ports:
1 x HDMI port
1 x DisplayPort
1 x USB TypeC port with USB 3.2 Gen 1 support
5 x USB 3.2 Gen 1 ports
7 x USB 2.0/1.1 ports
1 x RJ45 port
3 x audio jacks

Product Description

Experience topnotch performance and advanced features with the Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard. Designed to support Intel Core Ultra CPUs, this motherboard is built with the Intel B860 Express chipset and offers a wide range of capabilities for both casual and hardcore users.

The Gigabyte B860M D3HP supports up to 256GB of DDR5 memory at rates of up to 9066 MT/s when overclocked, ensuring improved multitasking and faster data processing. Its dualchannel memory architecture and compatibility with ECC and nonECC unbuffered DIMM modules provide versatility for various computing requirements.

Enjoy smooth and sharp images with the integrated Intel HD Graphics support, featuring an HDMI connector capable of 4K resolution at 60Hz and a DisplayPort that supports 3840×2160 at 144Hz. The motherboard also includes two M.2 connectors for PCIe 4.0 SSDs and four SATA 6Gb/s ports with RAID 0, 1, 5, and 10 compatibility, ensuring fast data transfer and secure storage options.

The expansion slots offer one PCIe 5.0 x16 slot for a dedicated GPU or NVMe SSD and two PCIe 3.0 x1 slots for extra peripherals. Realtek GbE LAN provides dependable networking, and multiple USB ports, including a USB TypeC port with USB 3.2 Gen 1 capability.

The Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard features Realtek highdefinition audio and supports up to 7.1channel sound for an immersive audio experience. The I/O panel supports HDMI, DisplayPort, USB 3.2 Gen 1, USB 2.0, and a PS/2 keyboard/mouse connector for historical compatibility.

Backed by a 3year warranty, the Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard is a reliable and highperformance choice for your desktop PC. Get yours today from Star Tech in Bangladesh and elevate your computing experience.
