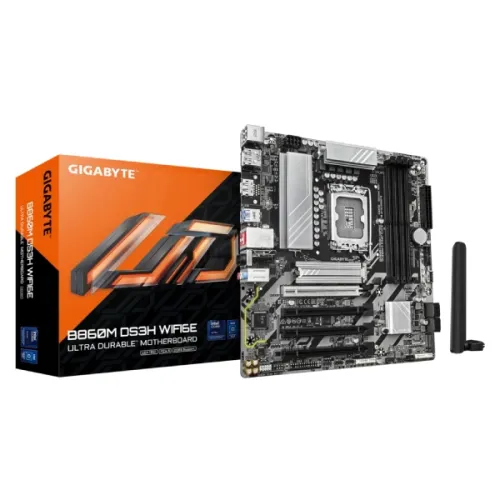

Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard

Product Specifications

Supported CPU: LGA1851 socket, Support for Intel Core Ultra Processors L3 cache varies with CPU
Chipset: Intel B860 Express Chipset
BIOS: 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Audio: Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1channel
Expansion Slots:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
3 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX11/2/3)
M.2 Socket:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2ACPU)
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2NSB)
Memory:
Type: DDR5
Slots: 4 x DIMM
Supported Memory: Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
Maximum Memory: up to 256 GB (64 GB single DIMM capacity) of system memory
Graphics:
Integrated Graphics ProcessorIntel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
2 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
Connector & Ports:
HDMI: 1 x HDMI port
Display Port (s): 2 x DisplayPort
USB (s):
1 x USB TypeC port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 TypeA port (red) on the back panel
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
3 x USB 2.0/1.1 ports on the back panel
LAN Port (s): Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module: Intel WiFi 6E AX211 (PCB rev. 1.0)
Supported Storage:
CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2ACPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2NSB)
4 x SATA 6Gb/s connectors
RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio: 3 x audio jacks
Internal I/O Ports:
1 x 24pin ATX main power connector
1 x 8pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB TypeC header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header
1 x QFlash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Product Description

Experience topnotch performance and cuttingedge features with the Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX motherboard. Engineered to support Intel Core Ultra Processors, this motherboard leverages the power of the Intel B860 Express chipset to deliver exceptional speed and efficiency. With a comprehensive range of features and advanced technologies, this motherboard is ideal for gaming, content creation, and professional applications.

The Gigabyte B860M DS3H WIFI6E motherboard boasts a robust design with support for up to 256GB of DDR5 RAM, with overclocking capabilities of up to 9066 MT/s. Its dualchannel memory architecture significantly enhances multitasking and responsiveness. The integrated Intel HD Graphics supports tripledisplay output via HDMI and dual DisplayPort connectors, providing smooth and immersive visuals with resolutions of up to 4096×2160 at 60Hz and 3840×2160 at 144Hz.

This motherboard features a range of expansion options, including a PCIe 5.0 x16 slot for powerful GPUs or NVMe storage, a PCIe 5.0 M.2 slot for highspeed NVMe SSDs, a PCIe 4.0 M.2 slot, and four SATA 6Gb/s ports with RAID support. Additionally, it offers comprehensive connectivity with Realtek 2.5GbE LAN, Intel WiFi 6E, and Bluetooth 5.3 for seamless networking and device pairing.

The Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX motherboard also features a wide range of USB ports, including USB 3.2 Gen 2 and Gen 1 ports, as well as USB TypeC support. Backed by a 3year warranty, this motherboard is a reliable and futureproof foundation for your next PC build.

Key Features:

Support for Intel Core Ultra Processors
Intel B860 Express chipset
Up to 256GB DDR5 RAM, with overclocking capabilities of up to 9066 MT/s
Integrated Intel HD Graphics with tripledisplay output
PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, PCIe 4.0 M.2 slot, and four SATA 6Gb/s ports
Realtek 2.5GbE LAN, Intel WiFi 6E, and Bluetooth 5.3
Comprehensive USB connectivity, including USB 3.2 Gen 2 and Gen 1 ports, and USB TypeC support
3year warranty

Upgrade your PC with the Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX motherboard, available now at Star Tech in Bangladesh.
