Gigabyte GA-H110M-H Micro ATX Motherboard

##

Gigabyte GA-H110M-H Micro ATX Motherboard Specification

### Key Specifications

* **Supported CPU:** Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package * For 7th Generation Intel® Core™ processors support need to update the latest BIOS. L3 cache varies with CPU
* **Chipset:** Intel® H110 Express Chipset
* **BIOS:** 1 x 64 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
* **Form Factor:** Micro ATX Form Factor; 22.6cm x 17.4cm

### Expansion Slots
* 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conform to PCI Express 3.0 standard.)
* 2 x PCI Express x1 slots (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)

### Memory
* **Type:** Dual channel DDR4 memory architecture
* **Slots:** 2 x DIMM
* **Supported Memory:** Support for DDR4 2400/2133 MHz memory modules Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
* **Maximum Memory:** 32 GB

### Graphics
* 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
* 1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz * Support for HDMI 1.4 version.
* **Max Shared Memory:** 1024 MB

### Connector & Ports
* 1 x HDMI
* 1 x D-Sub
* **USB Ports:**
+ Chipset: 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
+ 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
* **LAN Port:** Realtek® GbE LAN chip (10/100/1000 Mbit)
* **Supported Storage:** Chipset: 4 x SATA 6Gb/s connectors
* **Audio:** Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out

### Internal I/O Ports
* 1 x 24-pin ATX main power connector
* 1 x 4-pin ATX 12V power connector
* 4 x SATA 6Gb/s connectors
* 1 x CPU fan header
* 1 x system fan header
* 1 x front panel header
* 1 x front panel audio header
* 1 x S/PDIF Out header
* 1 x USB 3.0/2.0 header
* 2 x USB 2.0/1.1 headers
* 1 x Clear CMOS jumper

### Warranty Information
* **Manufacturing Warranty:** 03 Years

##

Description

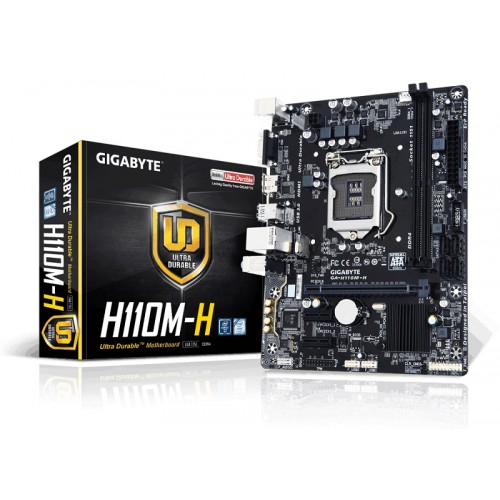

The Gigabyte GA-H110M-H Micro ATX ultra-durable motherboard is designed to support 7th/6th generation Intel Core i3, i5, and i7 processors. It features a robust build with dual channel DDR4 memory architecture, supporting up to 32GB of memory. The motherboard also boasts integrated Intel HD graphics with 1GB shared graphics memory, offering resolutions of 1920×1200@60 Hz for D-Sub and 4096×2160@24 Hz for HDMI.

This basic yet efficient motherboard includes Audio Noise Guard with High-Quality Audio Capacitors and Realtek GbE LAN with cFosSpeed Internet Accelerator Software. Additionally, it features the all-new GIGABYTE APP Center for easy use and supports Intel Small Business Basics.
