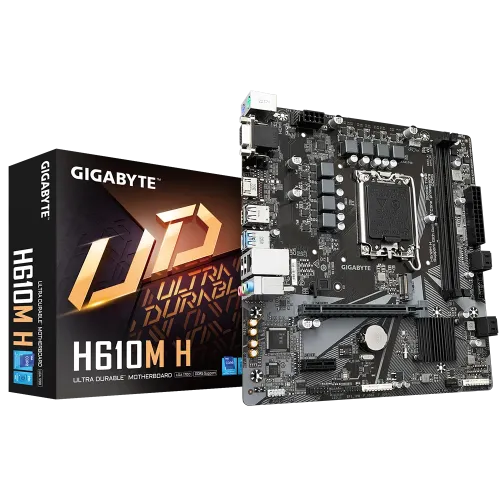

GIGABYTE H610M H DDR5 mATX Motherboard

Product Specifications

Supported CPU: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset: Intel H610 Express Chipset
BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: Micro ATX Form Factor; 23.0cm x 21.5cm
Audio: Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1channel
Expansion Slots:
PCI: CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory:
Type: DDR5
Slots: 2
Supported Memory: Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Maximum Memory: up to 64 GB (32 GB single DIMM capacity) of system memory
Graphics:
Graphics: Integrated Graphics ProcessorIntel HD Graphics support: 1 x DSub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Connector & Ports:
HDMI: 1x HDMI
DSub: 1x DSub port
USB:
Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port: Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage:
Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors:
Internal I/O Ports:
1 x 24pin ATX main power connector:
1 x 8pin ATX 12V power connector:
1 x CPU fan header:
2 x system fan headers:
1 x M.2 Socket 3 connector:
4 x SATA 6Gb/s connectors:
1 x RGB LED strip header:
1 x front panel header:
1 x front panel audio header:
1 x USB 3.2 Gen 1 header:
2 x USB 2.0/1.1 headers:
1 x serial port header:
1 x Clear CMOS jumper:

Product Description

The GIGABYTE H610M H DDR5 mATX Motherboard is a topnotch, highperformance motherboard designed to support 14th, 13th, and 12th generation Intel processors via the LGA1700 socket. This motherboard ensures a powerful and responsive computing experience, making it perfect for gamers, content creators, and enthusiasts alike.

Key features include support for DDR5 memory with dualchannel nonECC unbuffered DDR5 slots, offering a maximum capacity of 64GB that can be overclocked to 4800MHz. For superior graphics output, it includes 1x HDMI and 1x DSub connections, accommodating multiple display configurations.

Advanced features such as a 6+1+1 Hybrid Digital VRM Design for reliable power delivery, PCIe 4.0 Design for faster data transfer rates, and Gen3 x4 M.2 for highspeed data transmission with support for NVMe PCIe 3.0 x4 M.2 SSDs, enhance its performance.

Additionally, the motherboard boasts an AntiSulfur Resistor for increased longevity, and Smart Fan 6 with multiple temperature sensors and hybrid fan headers with FAN STOP for effective cooling. The GbE LAN with Bandwidth Management, highquality audio capacitors, and Audio Noise Guard provide an immersive audio experience.

The GIGABYTE APP Center offers a userfriendly interface for quick system customization and control. With added features like AntiSulfur Resistors Design for better endurance, the GIGABYTE H610M H DDR5 mATX Motherboard provides a dependable and highperformance platform.

Backed by a 3year warranty, you can purchase the GIGABYTE H610M H DDR5 mATX Motherboard from Star Tech, the best motherboard shop in BD, and enjoy the best performance for your desktop PC.
