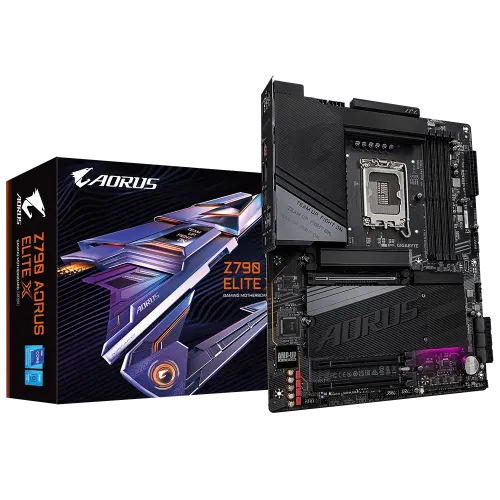

GIGABYTE Z790 AORUS ELITE X ATX Motherboard

Product Specifications

Supported CPU: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset: Intel Z790 Express Chipset
BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: ATX Form Factor; 30.5cm x 24.4cm
Audio: Realtek ALC1220VB CODEC High Definition Audio 2/4/5.1/7.1channel
Expansion Slots:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX41/PCIEX42)
Memory:
Type: DDR5
Slots: 4 x DIMM sockets
Supported Memory: Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Maximum Memory: up to 192 GB (48 GB single DIMM capacity)
Graphics:
Integrated Graphics ProcessorIntel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
Connector & Ports:
HDMI: 1 x HDMI
Display Port (s): 1 x DisplayPort
USB (s):
1 x USB TypeC port on the back panel, with USB 3.2 Gen 2×2 support
1 x USB TypeC port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 TypeA ports (red) on the back panel
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s): Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2ACPU)
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2PSB, M2QSB)
1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2MSB)
6 x SATA 6Gb/s connectors

Product Description

Unleash the full potential of your Intel Core 14th and 13thgeneration CPUs with the GIGABYTE Z790 AORUS ELITE X ATX Motherboard. Engineered for highperformance, this motherboard features a robust digital dual VRM design with 16+1+2 phases, ensuring stable power delivery for seamless gaming and multitasking experiences. With support for Dual Channel DDR5 memory via four DIMM slots and XMP 3.0 memory modules, you can enjoy enhanced memory performance and faster data transfer speeds.

The motherboard boasts an impressive array of expansion slots, including a PCIe 5.0 x16 slot with 10X power for the latest graphics cards, as well as two PCIe 4.0 x4 slots for additional peripherals. The EZLatch Click and EZLatch Plus M.2 heatsinks feature a screwless and quickrelease design, effectively dissipating heat from M.2 SSDs and improving overall system stability.

The GIGABYTE Z790 AORUS ELITE X ATX Motherboard also excels in graphics compatibility, with a range of display options including HDMI, DisplayPort, and support for Intel HD Graphics. With ultrafast storage capabilities via four PCIe 4.0 x4 M.2 slots, you can enjoy reduced loading times for games and applications.

Thermal management efficiency is a top priority, with the VRM Thermal Armor Advanced and M.2 Thermal Guard L assisting in maintaining optimal thermal performance even under extreme workloads. The motherboard also features a 2.5GbE LAN chip for speedy networking, making it ideal for online gaming and streaming.

With a range of connectivity options, including USBC, USB 3.2 Gen 2, and USB 2.0/1.1 ports, you can easily connect your devices and peripherals. The ALC1220 audio chipset and audiophilegrade capacitors deliver highquality sound for an immersive gaming and entertainment experience.

Backed by a 3year warranty, the GIGABYTE Z790 AORUS ELITE X ATX Motherboard is a toptier choice for gamers and power users seeking a reliable, highperformance motherboard for their desktop PC.
