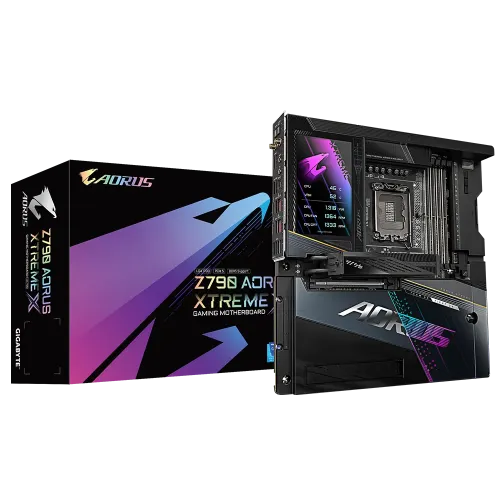

GIGABYTE Z790 AORUS XTREME X E-ATX Motherboard

Product Specifications

Supported CPU: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset: Intel Z790 Express Chipset
BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: EATX Form Factor; 30.5cm x 28.5cm
Audio: 1 ESS ES9280AC DAC chip + 2 ESS ES9080 chips DTS Sound Unbound High Definition Audio 2channel Support for S/PDIF Out
Expansion Slots:
CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Memory:
Type: DDR5
Slots: 4 x DIMM sockets
Supported Memory: Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Maximum Memory: 192 GB (48 GB single DIMM capacity)
Graphics: Integrated Graphics Processor+Intel Thunderbolt 4 Controller: 2 x Intel Thunderbolt 4 connectors (USB TypeC ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120×2880@60 Hz with 24 bpp (via single display output)
Connector & Ports:
USB (s):
Chipset+Intel Thunderbolt 4 Controller: 2 x USB TypeC ports on the back panel, with USB 3.2 Gen 2 support
Chipset: 2 x USB TypeC ports with USB 3.2 Gen 2×2 support, available through the internal USB header
Chipset+2 USB 3.2 Gen 2 Hubs: 8 x USB 3.2 Gen 2 TypeA ports (red) on the back panel
LAN Port (s): Marvell AQtion AQC107 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1) Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN2)
Wireless Communication module: Qualcomm WiFi 7 QCNCM865 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3
Supported Storage:
CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2CCPU)
Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2PSB, M2QSB)
4 x SATA 6Gb/s connectors

Product Description

Unleash unparalleled performance with the GIGABYTE Z790 AORUS XTREME X EATX Motherboard, engineered to meet the demands of the most discerning PC enthusiasts and professionals. This powerhouse motherboard supports Intel’s 14th, 13th, and 12thgeneration processors, ensuring toptier performance for gaming, content creation, and other resourceintensive tasks.

The motherboard boasts a digital twin 24+1+2 phases VRM solution, providing stable and efficient power distribution to the CPU. This makes it an ideal choice for overclocking and demanding workloads. With support for Dual Channel DDR5 memory and 4 DIMM slots compatible with XMP 3.0 memory modules, you can harness the full potential of highspeed DDR5 memory.

The PCIe UD Slot X offers a PCIe 5.0 x16 slot with 10X strength, providing faster data transfer rates and a superior gaming experience. Additionally, the motherboard features convenient designs like EZLatch Click and EZLatch Plus for toolfree access to M.2 slots and PCIe 5.0 x16 slots, as well as a usercentric UC BIOS for intuitive system customization.

The GIGABYTE Z790 AORUS XTREME X EATX Motherboard also features ultrafast storage, efficient thermal design, fast networking options, extended connectivity, and highquality audio components. Whether you’re building a highperformance gaming PC or a workstation for content creation, this motherboard is an excellent choice.

Backed by a 3year warranty, the GIGABYTE Z790 AORUS XTREME X EATX Motherboard is a premium and highperformance solution for those seeking a topnotch PC building experience.

Key Features:
Support for Intel Core 14th, 13th, and 12thgeneration processors
Digital twin 24+1+2 phases VRM solution for stable power distribution
Dual Channel DDR5 memory support with 4 DIMM slots
PCIe 5.0 x16 slot with 10X strength for superior gaming performance
Ultrafast storage, efficient thermal design, and fast networking options
Highquality audio components and extended connectivity

Get the GIGABYTE Z790 AORUS XTREME X EATX Motherboard from Star Tech in Bangladesh and experience the ultimate in PC performance and customization.
