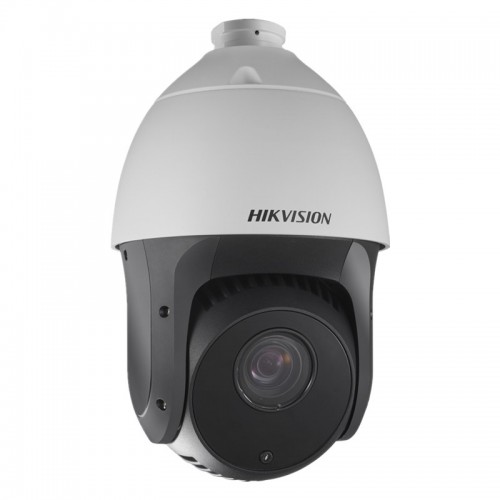

Hikvision DS-2AE5223TI-A HD1080P Turbo IR PTZ Dome Camera

##

Hikvision DS-2AE5223TI-A HD1080P Turbo IR PTZ Dome Camera Specification

### Camera
* Image Sensor: 1/3″ Progressive Scan CMOS
* Effective Pixels: 1920(H)x1080(V)
* Signal System: PAL/NTSC
* Minimum Illumination: Color: 0.05Lux@(F1.4,AGC ON), B/W: 0.005Lux@(F1.4,AGC ON)
* White Balance: Auto / Manual / ATW / Indoor / Outdoor
* AGC: Auto/Manual
* BLC: ON/OFF
* WDR: DWDR
* Shutter Time: PAL: 1-1/10,000s, NTSC: 1-1/10,000s
* Day& Night: ICR
* Digital Zoom: 16x
* Privacy Masking: 8 privacy masks programmable
* Auto Focus: Auto / Semi-automatic / Manual

### Lens
* Focal Length: 4-92mm, 23x
* Zoom Speed: Approx.3.0s(Optical Wide-Tele)
* Angle of View: 49-2.2 degree (Wide-Tele)
* Minimum Working Distance: 10-1000mm(Wide-Tele)
* Aperture Range: F1.4~F3.5

### PTZ
* Pan Range: 360°endless
* Pan Speed: Pan Manual Speed: 0.1°-250°/s, Pan Preset Speed: 300°/s
* Tilt Range: -5°~90° (Auto Flip )
* Tilt Speed: Tilt Manual Speed: 0.1°-150°/s, Tilt Preset Speed: 200°/s
* Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
* Number of Preset: 256
* Patrol: 8 patrols, up to 32 presets per patrol
* Pattern: 4 patterns, with the recording time not less than 10 minutes per pattern
* Power loss recovery: Support
* Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
* PTZ Position Display: ON/OFF
* Freeze Frame: Support

### Additional Features
* 2MP CMOS Image Sensor
* ±0.1° Preset Accuracy
* Self-adaptive to HIKVISION, Pelco-P/D protocol
* 3D intelligent positioning function
* Power-off memory function: restore PTZ & Lens status after reboot
* Built-in temperature sensor, with display of internal temperature
* Lightning protection, surge protection and voltage transient protection
* IP66 standard (outdoor dome)
* Impact Protection: IEC60068-2-75 test, Eh, 20J; EN50102
* RS-485 communication diagnosis
* Scheduled PTZ movement
* UTC(Up the Coax) function
* TVI and CVBS dual output
* 3D DNR, digital WDR

##

Description

The Hikvision DS-2AE5223TI-A HD1080P Turbo IR PTZ Dome Camera is a high-performance camera designed for outdoor use. With its 2MP CMOS image sensor and 23x optical zoom lens, it provides clear and detailed images of objects up to 92mm focal length. The camera features a wide range of functions, including 3D intelligent positioning, power-off memory, and built-in temperature sensor. It also supports multiple protocols, including HIKVISION and Pelco-P/D.

The camera’s durable design and IP66 standard make it suitable for outdoor use, and its impact protection features ensure that it can withstand harsh environments. With its advanced features and high-quality image output, the Hikvision DS-2AE5223TI-A is an ideal choice for applications that require high-performance surveillance.

Warranty: 01 Year

Price in Bangladesh: Please contact us for the latest price.
