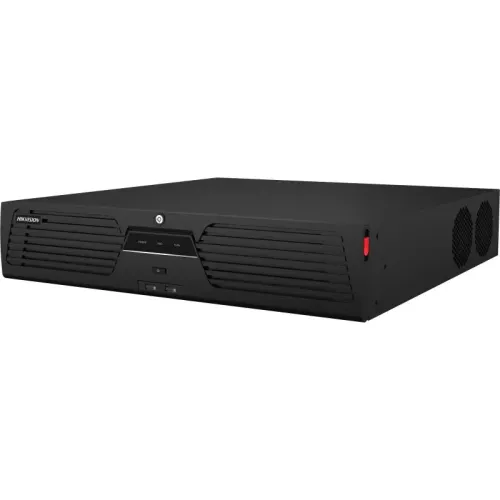

Hikvision DS-9664NI-M8 64 Channel 4K NVR

Product Specifications

IP Camera Input: Support up to 64ch
TwoWay Talk: 1 Channel RCA (2.0 Vpp, 1 K, using the audio input)
Resolution (HDMI 2 Output): 4K (3840 × 2160) @ 60 Hz, 4K (3840 × 2160) @ 30 Hz, 2K (2560 × 1440) @ 60 Hz, 1920 × 1080 @ 60 Hz (When HDMI 1 output is 8K, HDMI 2 maxes at 1080p)
Recording Resolution: 32 MP / 24 MP / 12 MP / 8 MP / 7 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Decoding Capacity: 2ch @ 32 MP (30 fps) + 2ch @ 8 MP (30 fps) / 10ch @ 8 MP (30 fps) / 20ch @ 4 MP (30 fps) / 40ch @ 1080p (30 fps)
Audio Compression: G.711 ulaw / G.711 alaw / G.722 / G.726 / AAC / MP2L2 / PCM
Sync Playback: 16 Channel
Network Interface: 2 × RJ45 10/100/1000 Mbps selfadaptive Ethernet ports
USB Ports: Front panel 2 × USB 2.0; Rear panel 2 × USB 3.0
RS232: 1 Port
RS485: 1 Port (fullduplex)
Power Supply: 100240 VAC, 5060 Hz
Power Consumption: ≤ 50 W (without HDD)
Dimensions: 445 × 465 × 93 mm (17.5″ × 18.3″ × 3.7″)
Net Weight: ≤ 10 kg (without HDD, 22 lb)
Warranty: 1 Year Manufacturing Warranty

Product Description

The Hikvision DS9664NIM8 64Channel 4K NVR delivers highquality, bestperformance surveillance for demanding business environments. With support for up to 64 IP cameras and a robust 400 Mbps bandwidth, this premium design ensures smooth, reliable video transmission across largescale security networks.

Enjoy ultrahighdefinition monitoring with dual HDMI and VGA outputsHDMI 1 can drive 8K ultraHD, while HDMI 2 provides crystalclear 4K (or lower) resolutions. The NVR’s durable build supports resolutions up to 32 MP and offers 16channel simultaneous playback, making it a musthave accessory for any professional monitoring station.

Advanced storage flexibility is builtin with RAID 0, 1, 5, 6, 10 options and eight hotpluggable SATA bays (up to 16 TB per disk), safeguarding your footage against data loss. Integrated smart analyticsincluding people counting, ANPR, and fisheye camera supportfit your needs perfectly for intelligent, automated surveillance.

Connectivity is seamless with two Gigabit Ethernet ports, extensive protocol support (ONVIF 2.5, RTSP, HTTP, HTTPS), 16 alarm inputs, 9 alarm outputs, RS232/RS485, and multiple USB interfaces for peripheral integration. Housed in a 2U rackmount chassis, it operates reliably from 10 °C to 55 °C, ideal for harsh professional settings.

Certified CE and FCC, backed by a 1year warranty, the Hikvision DS9664NIM8 64Channel 4K NVR is the ultimate solution for enterprises seeking highperformance video management, secure storage, and cuttingedge surveillance capabilities. Purchase now from Star Tech Bangladesh for the best price and original product assurance.
