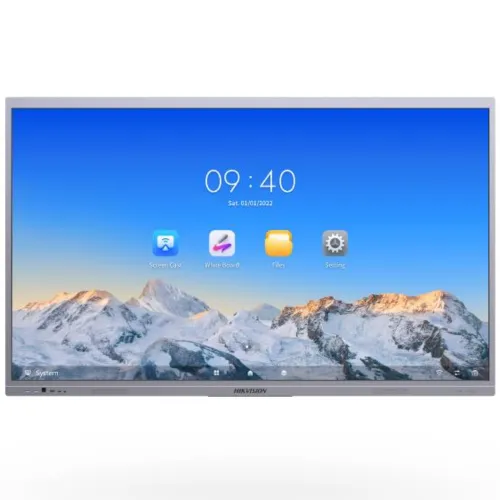

Hikvision DS-D5C86RBA 86 Inch 4K UHD Interactive Flat Panel Display For Android

Product Specifications

Display Format: Native 4K Ultra HD 3840 × 2160
Panel Type: DLED with 3.2 mm AntiGlare Glass (Zero Lamination)
Aspect Ratio: 16:9
Picture Response Time: 6 ms
Refresh Rate: 60 Hz
Pixel Pitch: 0.124 mm (H) × 0.372 mm (V)
Display Colors: 1.07 Billion (1.07G)
Brightness: 400 cd/m² (typ.)
Contrast Ratio: 5,000:1 (Static) / 30,000:1 (Dynamic)
Viewing Angle: 178° (H) / 178° (V)
Lifetime: 50,000 hours

Touch Points: 45point multitouch
Touch Response Time: < 5 ms
Surface Hardness: 9H (tempered glass)
Interpolation Resolution: 32,768 × 32,768
Minimum Touch Object: ≥ 2 mm
Touch Precision: ± 1 mm (≥ 90 % area)

Operating System: Android 13.0
CPU: Quadcore CortexA76 × 4 @ 2.4 GHz + Quadcore CortexA55 × 4 @ 1.8 GHz
GPU: MaliG610 MC4
RAM: 8 GB
ROM: 128 GB
HDCP: Version 2.3

HDMI: 3 × HDMI 2.0 (Input) + 1 × HDMI 2.0 (Output)
VGA: 1 × VGA
Audio In: 1 × 3.5 mm + 1 × SPDIF
Audio Out: 1 × 3.5 mm + 2 × 12 W Stereo Speakers (2 × 20 W + 25 W)
LAN: 1 × RJ45
USB: 4 × USB 3.0, 1 × USB 2.0, 2 × TypeC (USB 2.0/DP 1.2/Charging, 15 W side, 65 W front)
RS232: 1 × RS232

Screen Size: 86 Inch (Active Area 1428.48 mm × 803.52 mm)
Dimensions (W × H × D): 1960.5 mm × 1158.2 mm × 82.5 mm
Weight: 64.13 kg
Power Consumption: ≤ 107 W (100240 VAC, 50/60 Hz)
Standby Power: ≤ 0.5 W
Builtin Speakers: 2 × 20 W + 25 W
Bluetooth: BLE 5.1
NFC: Screen mirroring support
Light Sensor: Yes

Warranty: 3 Years (including transportation for outside Dhaka)

Product Description

Experience the high quality visual brilliance of the Hikvision DSD5C86RB/A 86inch 4K UHD Interactive Flat Panel. With a premium design featuring a 3.2 mm antiglare glass surface and durable build rated 9H, this display delivers crystalclear images at 3840 × 2160 resolution, 400 cd/m² brightness, and a stunning 30,000:1 dynamic contrast ratio.

The best performance is guaranteed by a 6 ms response time, 60 Hz refresh rate, and 45point multitouch technology that reacts in under 5 ms, allowing seamless collaboration, digital whiteboarding, and interactive learning. Powered by Android 13, an octacore CortexA76/A55 processor, MaliG610 GPU, 8 GB RAM and 128 GB storage, the panel runs apps smoothly and supports HDCP 2.3 for secure content playback.

Connectivity is comprehensive: three HDMI 2.0 inputs, HDMI output, VGA, USBC (charging & DP), USB 3.0, LAN, RS232, and audio I/O ensure you can link PCs, laptops, media players, and IoT devices without hassle. Builtin dualband Bluetooth 5.1, NFC screen mirroring, and a light sensor add smart convenience for modern classrooms, boardrooms, and digital signage.

At a price in Bangladesh that reflects true value, this allinone solution fits your needs perfectlywhether for education, corporate training, or interactive advertising. Backed by a 3year warranty and low standby power (< 0.5 W), the Hikvision 86inch 4K UHD Interactive Flat Panel is a musthave accessory for anyone seeking immersive, reliable, and futureready interactive display technology.
