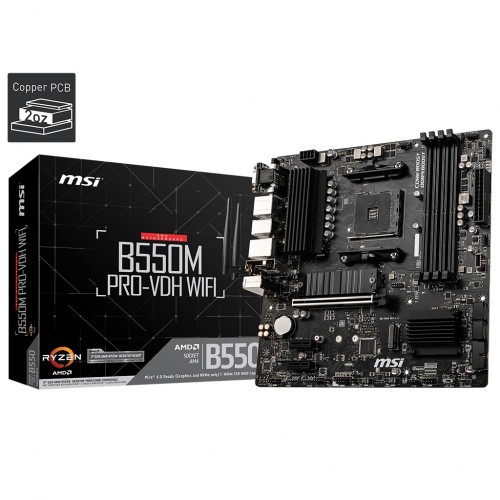

MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard

Product Specifications

Basic Information

• Supported CPU: AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
• Chipset: AMD B550
• Form Factor: Micro‑ATX (9.6” x 9.6” / 24.4 cm × 24.4 cm)
• Warranty: 3‑Year Manufacturing Warranty – Bangladeshi buyers can enjoy peace of mind.

Expansion Slots

• PCIe: 1× PCIe 4.0/3.0 x16 slot (PCI_E1)
• 2× PCIe 3.0 x1 slots
• M.2 Slots: 2× M.2 (Key M) – one PCIe 4.0/3.0 x4, one PCIe 3.0 x4; supports SATA 6 Gb/s, 2242/2260/2280 SSDs.

Memory

• 4× DDR4 slots – Dual‑Channel architecture
• Supports DDR4 1866–4400 MHz (JEDEC & A‑XMP OC modes)
• Maximum capacity: 128 GB (non‑ECC & ECC UDIMM supported)

Graphics & Display

• 1× VGA, 1× DisplayPort, 1× HDMI 2.1
• Maximum resolution: 4096 × 2160 @60 Hz on DisplayPort & HDMI
• Shared GPU memory: up to 16 GB

Connectivity & Ports

• Wi‑Fi 802.11 a/b/g/n/ac (Intel Dual‑Band Wireless‑AC 3168)
• Bluetooth 4.2 (Dual‑Mode)
• USB: 3× USB 3.2 Gen 1 (1 Type‑C + 2 Type‑A), 4× USB 3.2 Gen 1 (processor), 6× USB 2.0 (2 rear + 4 internal)
• LAN: Realtek 8111HN Gigabit Ethernet
• SATA: 4× SATA 6 Gb/s, 2× M.2 (PCIe 4.0/3.0)
• Audio: Realtek ALC892 7.1‑Channel HD Audio
• Other I/O: 24‑pin ATX, 8‑pin 12V, fan headers, RGB connectors, TPM module, Clear CMOS jumper

Power & Thermal Management

• 10‑phase digital VRM with Doubler Design for stable overclocking
• Extended PWM heatsink (7 W/mK) & M.2 Shield FROZR for SSD cooling
• Dedicated water‑pump header (3 A) and 4 temperature‑target fan control

Additional Features

• PCIe 4.0 Gen 4 M.2 slots – 64 Gb/s unidirectional bandwidth
• Steel armor PCB & 2 oz thickened copper for durability
• Core Boost & A‑XMP support for maximum performance

Product Description

Elevate your AMD Ryzen build with the MSI B550M Pro‑VDH Wi‑Fi – a compact yet powerful Micro‑ATX motherboard that blends cutting‑edge performance with everyday practicality. Designed for the Bangladeshi market, this board delivers professional‑grade reliability while keeping the price competitive, making it an ideal choice for gamers, content creators, and office workstations alike.

With a robust 10‑phase VRM and a dedicated water‑pump header, the Pro‑VDH keeps your 3rd‑generation Ryzen processor cool under load, allowing you to push performance without compromising stability. The M.2 Shield FROZR ensures your high‑speed SSD stays within optimal temperature ranges, preserving peak read/write speeds even during extended sessions.

Connectivity is never an issue: a built‑in Intel Dual‑Band Wireless‑AC 3168 guarantees fast Wi‑Fi 5 speeds, while the integrated Bluetooth 4.2 lets you pair peripherals effortlessly. The board supports PCIe 4.0 for future‑proof expansion, and its 4× SATA and dual M.2 slots allow you to build a fast, storage‑rich system.

For audio enthusiasts, the Realtek ALC892 codec delivers crystal‑clear 7.1‑channel sound, and the extensive I/O options—USB 3.2, HDMI 2.1, DisplayPort, and more—ensure you can connect all your devices with ease. Whether you’re streaming, gaming, or working on a complex design, the MSI B550M Pro‑VDH Wi‑Fi offers the performance and features you need at a price that fits the Bangladeshi budget.

Choose the MSI B550M Pro‑VDH Wi‑Fi – where professional engineering meets everyday affordability. Build smarter, play harder, and stay connected without breaking the bank.
