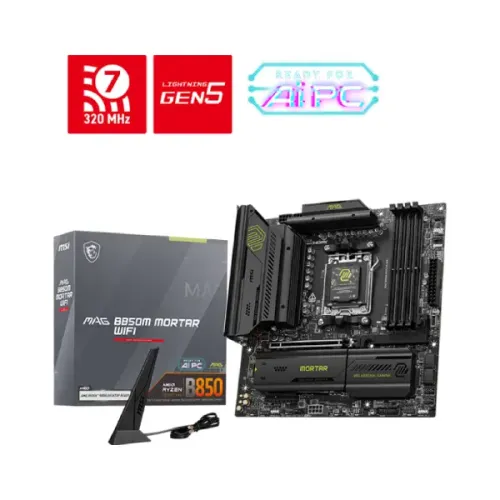

MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard

Product Specifications

Supported CPU: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset: AMD B850
Form Factor: mATX 243.84mmx243.84mm
Audio Codec: Realtek ALC4080 Codec
Audio Features: 7.1Channel USB High Performance Audio, Supports up to 32bit/384kHz playback on front panel, Supports S/PDIF output
PCIe x16 Slot: 1x PCIE x16 slot (PCIE1 Gen PCIe 5.0, from CPU, supports up to x16)
PCIe x4 Slot: 1x PCIE x4 slot (PCIE2 Gen PCIe 4.0, from Chipset, supports up to x4)
M.2 Slots: 3x M.2 slots (2x PCIe 5.0 x4 from CPU, 1x PCIe 4.0 x2 from Chipset)
Memory Type: DDR5
Memory Slots: 4x DIMMs
Supported Memory (OC): DDR5 8200 5600 MT/s (OC)
Supported Memory (JEDEC): 5600 4800 MT/s (JEDEC)
Maximum Memory: 256GB
Memory Features: Supports AMD POR Speed, JEDEC Speed, Memory Overclocking, AMD EXPO™, DualChannel mode, NonECC, Unbuffered memory, CUDIMM, Clock Driver bypass mode
HDMI Port: 1x HDMI 2.1 FRL, maximum resolution of 8K 60Hz (Available only on processors featuring integrated graphics)
Rear USB Ports: 4x USB 5Gbps Type A, 3x USB 10Gbps Type A, 1x USB 10Gbps Type C, 1x USB 20Gbps Type C
Front USB Headers: 4x USB 2.0, 2x USB 5Gbps Type A, 1x USB 10Gbps Type C
LAN Port: Realtek 8126VB 5G LAN
Wireless Communication: WiFi 7 Solution (preinstalled M.2 KeyE), MUMIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps, Supports 802.11 a/b/g/n/ac/ax/be, Bluetooth 5.4, MLO, 4KQAM
Storage Support: 3x M.2 slots (as detailed above), 4x SATA 6G
RAID Support: RAID 0, 1, 10 for SATA; RAID 0, 1, 5 for M.2 NVMe (RAID 5 for Ryzen™ 9000 Series Processors only)
Internal I/O Ports: 1x ATX Power, 2x CPU Power, 1x PCIe Power 8pin, 1x CPU Fan, 1x Combo Fan (PumpSys Fan), 4x System Fan, 1x EZ Connheader, 2x Front Panel, 1x Chassis Intrusion, 1x Front Audio, 1x Tuning Controller, 3x Addressable V2 RGB, 1x RGB LED, 1x TPM pin header (Support TPM 2.0)
Special Features: 4x EZ Debug LED, 1x EZ Memory Detection LED, 12+2+1 Duet Rail Power System, Core Boost, Memory Boost, 8layer 2oz thickened copper PCB, Frozr Guard thermal design, Extended Heatsinks, 7W/mK thermal pads, Choke Cooling, EZ M.2 Shield Frozr II, Audio Boost 5, EZ PCIe Release, EZ M.2 Clip II, EZ Antenna
Manufacturing Warranty: 3 Years

Product Description

Unleash the full potential of your nextgen AMD Ryzen system with the MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard. Engineered for exceptional performance and reliability, this motherboard is a musthave accessory for gamers, creators, and power users in Bangladesh seeking the ultimate AM5 platform. Crafted with a premium design and a durable build, it’s ready to handle the most demanding tasks.

At its core, the MAG B850M MORTAR WIFI supports the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors, offering unparalleled processing power. Experience best performance with its robust 12+2+1 Duet Rail Power System, reinforced by dual 8pin CPU power connectors and an 8layer PCB with 2oz thickened copper. This advanced power delivery ensures stable power to your CPU, even under extreme loads or when pushing for high overclocks with Core Boost technology.

Memory performance is paramount, and this motherboard excels with four DDR5 DIMM slots supporting a massive 256GB of memory. Achieve blazingfast speeds of up to 8200+ MT/s (OC) with AMD EXPO™ support, ensuring your applications run smoother and your games load quicker. The cuttingedge Frozr Guard thermal design, featuring extended heatsinks, highperformance 7W/mK thermal pads, and EZ M.2 Shield Frozr II, guarantees optimal heat dissipation for both the VRMs and your highspeed M.2 SSDs, maintaining peak performance during intense sessions.

Connectivity is second to none, with a futureproof WiFi 7 solution and a Realtek 5G LAN port for incredibly fast, lowlatency online experiences. The board is loaded with versatile USB options, including a blazingfast 20Gbps USB TypeC port on the rear, along with multiple 10Gbps and 5Gbps ports to fit your needs perfectly. For storage, you get three M.2 slots, two of which boast PCIe 5.0 x4 for the fastest SSDs available, complemented by four SATA 6G ports, all supporting comprehensive RAID configurations.

Immerse yourself in rich, studiograde audio with the Realtek ALC4080 Codec, offering 7.1channel USB High Performance Audio, 32bit/384kHz playback, and Audio Boost 5. Building and troubleshooting your PC is made simple with MSI’s EZ DIY features, including EZ PCIe Release, EZ M.2 Clip II, EZ Antenna, and intuitive EZ Debug LEDs. This high quality motherboard is designed to offer a seamless, highperformance computing experience, making it an excellent choice for any enthusiast looking to build a powerful and reliable system. With a 3year manufacturing warranty, the MSI MAG B850M MORTAR WIFI is a fantastic investment for your desktop PC, promising durability and peace of mind.
