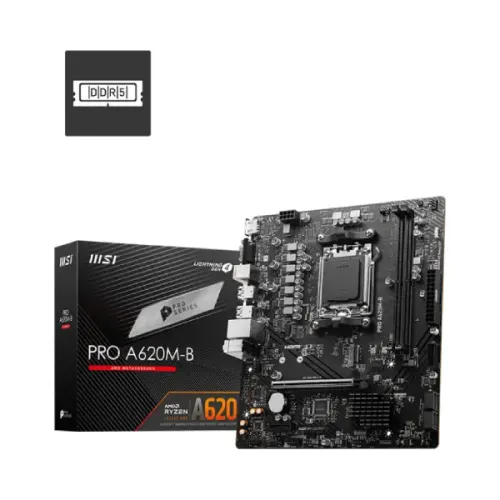

MSI PRO A620M-B AM5 mATX Motherboard

Product Specifications

Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset: AMD A620
Form Factor: mATX (215mm x 243.84mm)
Audio: Realtek® ALC897 Codec 7.1Channel High Definition Audio
PCIE x16 Slot: 1x (Supports x16 for Ryzen 9000/7000, x8 for Ryzen 8700/8600/8400, x4 for Ryzen 8500/8300 Series)
PCIE x1 Slot: 1x Gen PCIe 3.0 (from Chipset)
M.2 Socket: 1x (M.21, PCIe 4.0 x4 from CPU, supports 2280/2260 devices)
Memory Type: DDR5
Memory Slots: 2x DIMMs
Supported Memory: DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s
Maximum Memory: 128GB
HDMI Port: 1x HDMI 2.1 (supports 4K 60Hz)
VGA Port: 1x VGA (supports up to 2048×1536 50Hz)
Rear USB Ports: 2x USB 2.0, 4x USB 5Gbps Type A
Front USB Ports (via header): 4x USB 2.0, 2x USB 5Gbps Type A
LAN Port: Realtek RTL8125BG 2.5G LAN
Storage Support: 1x M.2 (PCIe 4.0 x4), 4x SATA 6G
RAID Support: RAID 0, RAID 1, RAID 10 for SATA storage devices
Internal I/O Ports: 1x ATXPWR, 1x CPUPWR, 1x CPU Fan, 2x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x Addressable V2 RGB LED (JARGBV2), 1x RGB LED (JRGB), 1x TPM pin header
Special Features: 4x EZ Debug LED
Warranty: 3 Years

Product Description

Unleash the full potential of your nextgen AMD system with the MSI PRO A620MB AM5 mATX Motherboard, engineered to deliver exceptional performance and reliability. This board is a cornerstone for building a powerful, futureready desktop PC, specifically designed to support the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors on the AM5 socket. Experience truly optimized computing with this essential upgrade.

At its core, the MSI PRO A620MB features an AMD A620 chipset, providing a robust and efficient platform for all your tasks. With two DDR5 DIMM slots, you can harness blazingfast memory speeds up to an incredible 6800+(OC) MHz, accommodating up to 128GB of RAM for seamless multitasking, demanding applications, and highfidelity gaming. This ensures you get the best performance from your system, making it a perfect fit for enthusiasts and professionals alike.

Connectivity is paramount, and this motherboard delivers with a Realtek RTL8125BG 2.5G LAN, offering lightningfast internet speeds for competitive online gaming and rapid data transfers, a musthave accessory for today’s digital world. Storage options are equally impressive, featuring a PCIe 4.0 x4 M.2 slot for ultrafast NVMe SSDs and four SATA 6G ports with RAID 0, 1, and 10 support for versatile storage configurations, ensuring your data is both fast and secure.

Crafted with a durable build and a premium design, the MSI PRO A620MB boasts a microATX form factor that fits your needs perfectly for compact yet powerful system builds. Integrated Realtek ALC897 7.1channel highdefinition audio provides immersive sound for all your entertainment. Troubleshooting is made simple with 4x EZ Debug LEDs, guiding you through any system issues with ease. From casual users to hardcore gamers, this high quality motherboard provides an excellent foundation, offering outstanding value and a comprehensive feature set for an unbeatable computing experience. Secure your system’s future with the MSI PRO A620MB, an investment in stability and cuttingedge technology.
