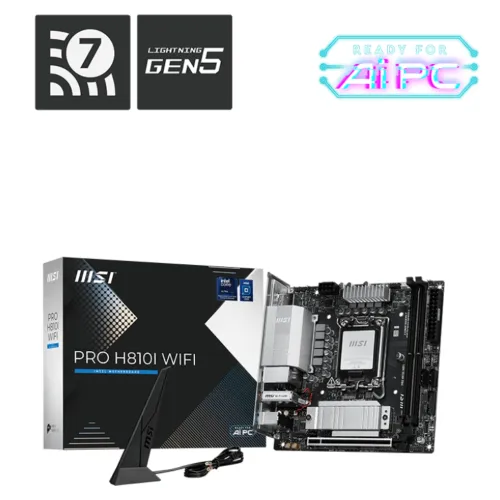

MSI PRO H810I WIFI LGA 1851 Mini-ITX Motherboard

Product Specifications

Supported CPU: Intel Core Ultra Processors (Series 2) LGA 1851
Chipset: INTEL H810
Form Factor: MiniITX 170mmx170mm
Audio: Realtek ALC897 Codec 7.1Channel High Definition Audio
Memory Type: DDR5
Memory Slots: 2
Supported Memory: 9200 6400 (OC) MT/s / 6400 4800 (JEDEC) MT/s
Maximum Memory: 128GB
Graphics: 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Expansion Slots: 1x PCIE x16 slot PCIE1 Gen PCIe 5.0 supports up to x16 (From CPU), 1x M.2 M.21 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
Connector & Ports: 1x HDMI 2.1, 1x DisplayPort 1.4, 2x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front), 1x USB 10Gbps Type C (Front), 1x USB 20Gbps Type C (Rear)
LAN Port: Intel I226 2.5Gbps LAN
Wireless Communication: WiFi 7, Bluetooth 5.4

Product Description

The MSI PRO H810I WIFI LGA 1851 MiniITX motherboard is a powerful and compact solution for modern PC builds, offering cuttingedge performance and nextgeneration connectivity. Powered by the Intel H810 chipset, it supports Intel Core Ultra Processors (Series 2) on the LGA 1851 socket, making it a reliable platform for productivity, gaming, and multimedia tasks.

With support for dualchannel DDR5 memory, this motherboard allows for up to 128GB of capacity and speeds of up to 6400 MT/s, while Intel XMP 3.0 enables seamless overclocking for enhanced performance. The MSI MiniITX motherboard features Core Boost and Memory Boost technologies to ensure consistent power delivery and clean data transmission, resulting in efficiency for demanding applications.

The MSI PRO H810I WIFI MiniITX motherboard also features a PCIe 5.0 x16 slot for expansion with the latest graphics cards, a PCIe 4.0 x4 M.2 slot, and two SATA 6Gb/s connectors for storage support. With Intel I226 2.5Gbps LAN and advanced WiFi 7 with Bluetooth 5.4, this motherboard provides safe, stable, and ultrafast networking at speeds of up to 2.9Gbps.

The motherboard’s display options include HDMI 2.1 and DisplayPort 1.4, with 4K resolution at 60Hz depending on the CPU. The Realtek ALC897 codec handles audio, and the 7.1channel highdefinition sound ensures an immersive experience.

The MSI PRO H810I WIFI MiniITX motherboard comes with a range of USB ports, including a 20Gbps TypeC on the back, a 10Gbps TypeC on the front, and multiple USB 5Gbps and USB 2.0 ports. Features like EZ PCIe Clip II, EZ Debug LEDs, and EZ Memory Detection make installation and troubleshooting easy, while RGB headers allow for further customization.

Buy the MSI PRO H810I WIFI MiniITX Motherboard from Star Tech in Bangladesh and enjoy a 3year warranty. This motherboard strikes the perfect balance between compact form factor, robust performance, and nextgeneration networking, making it an excellent choice for both small form factor enthusiasts and professionals.
